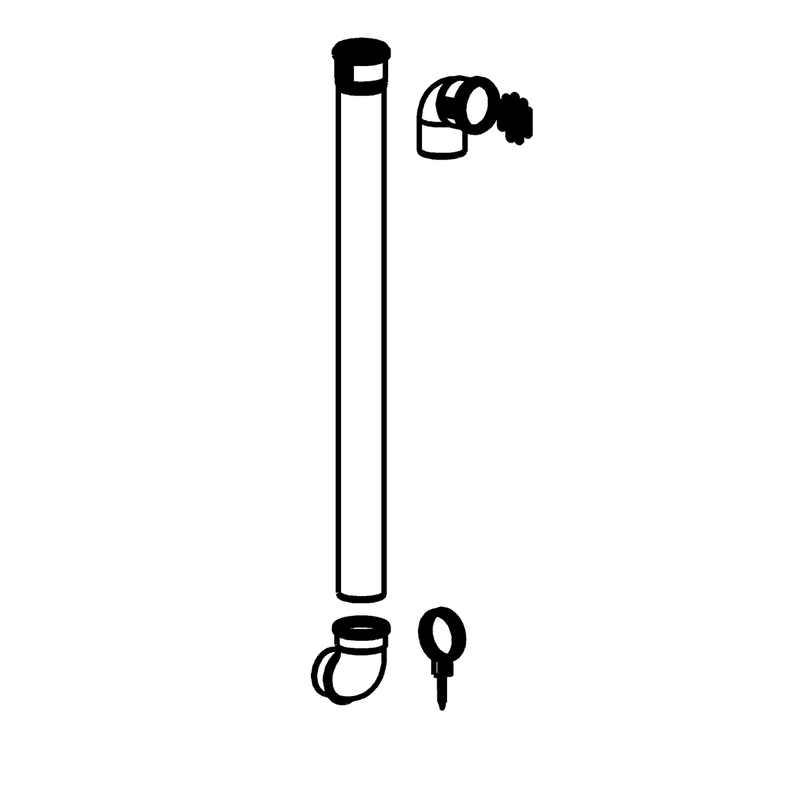

ECONEXT® PMK Start Kit Ø 80
ECONEXT® PMK Start Kit Ø 80
Are you looking for brochures, manuals or videos of this product?
Article number: | BKHGAA501 |
---|---|
Packaging dimensions: | 1200 x 170 x 170 mm |
Quantity per pack: | 1 stuks |
Number of units: | 1 stuks |
Minimum order quantity: | 1 stuks |
GTIN: | 08711939263047 |
Gross weight: | 1,85 kg |
Net weight: | 1,35 kg |
Inner diameter, connection 1: | 76 mm |
---|---|
Length: | 2200 mm |
Outer diameter: | 80 mm |
Outer diameter connection 1: | 80 mm |
Wall thickness: | 2 mm |
Working length: | 2050 mm |
Colour: | Black |
Dry (non-condensing): | No |
Material: | Plastic |
Material quality: | Polypropylene (PP) |
Material sealing: | Ethylene-propylene diene monomer rubber (EPDM) |
Max. medium temperature (continuous): | 120 °C |
Negative (negative pressure): | No |
Number of lips: | 2 |
Only suitable for air supply: | No |
Position of lips: | Straight |
Positive (overpressure): | Yes |
Production method: | Seamless |
RAL-number: | 9005 |
Surface protection: | Untreated |
Surface treatment: | Untreated |
Wet (condensing): | Yes |
With clamping strip: | No |
With lip ring: | Yes |
With pull-out protection: | No |
ECONEXT® PMK Start Kit Ø 80
Available in 1 alternatives
Art.nr. | Ø mm | RAL | Length (mm) | b | 3 | c |
---|---|---|---|---|---|---|
BKHGAA501 | 80 | 9005 | 2200 | 1 | 36 | 869 |
Suitable for
ECONEXT® PMK pipe L1000 Ø 80
ECONEXT® PMK pipe L500 Ø 80
ECONEXT® PMK bend 45º Ø 80
ECONEXT® PMK bend 87º Ø 80
