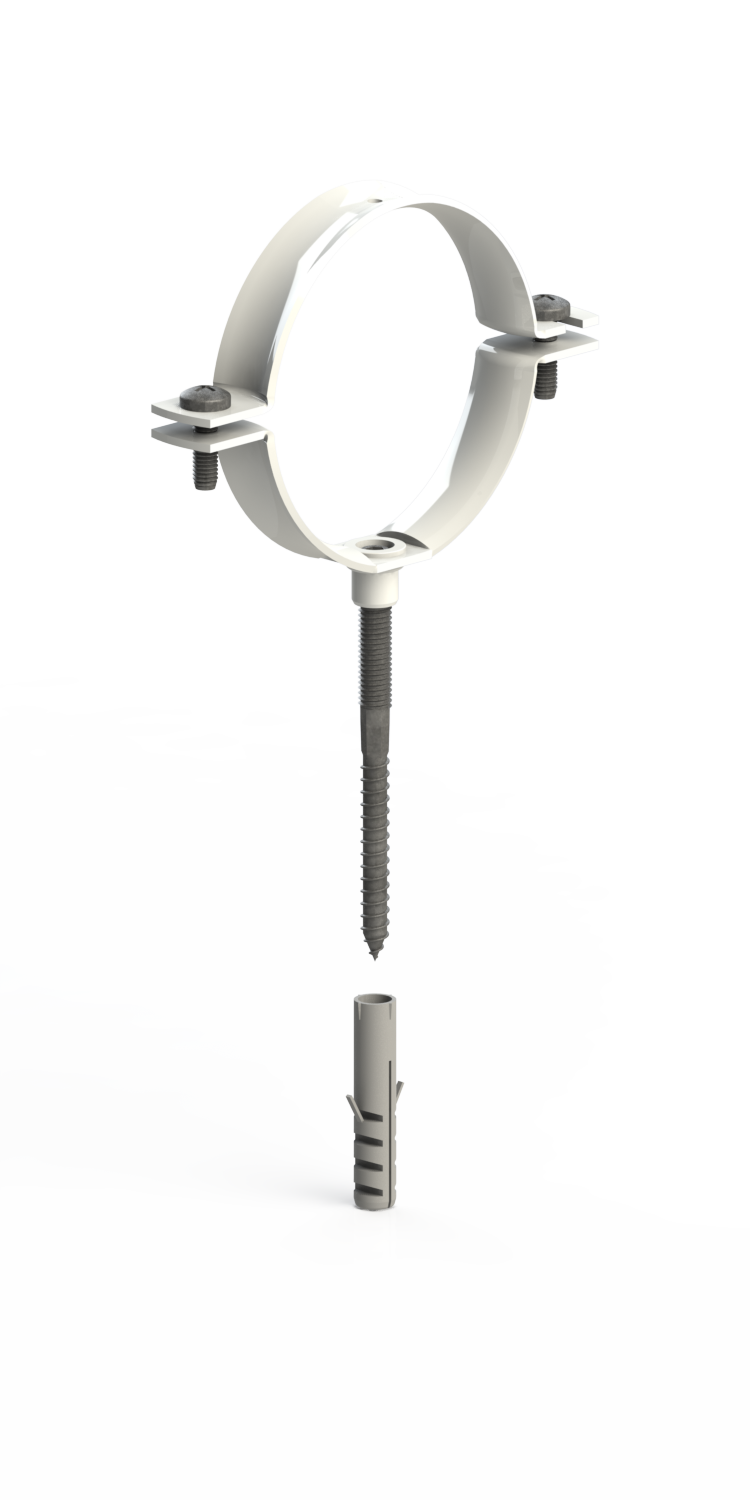

Aluminium fixation bracket Ø 60 white

Are you looking for brochures, manuals or videos of this product?

Nominal diameter:	Other
Outer pipe diameter:	60 mm
Connection facility:	Coach screw pin
Connection size, connection facility:	M8
FM quality mark:	No
Inlay:	None
KIWA certified:	No
LPCB quality mark:	No
Lock facility:	Double screw
Material:	Aluminium
Material quality:	Other
Suitable for aluminium tube:	Yes
Suitable for cast iron pipe:	No
Suitable for copper tube:	No
Suitable for number of pipes:	1
Suitable for pipe coil:	No
Suitable for plastic tube:	No
Suitable for stainless steel tube:	No
Suitable for steel tube:	Yes
Surface protection:	Untreated
Surface treatment:	Untreated
UL quality mark:	No
ULC quality mark:	No
VdS quality mark:	No

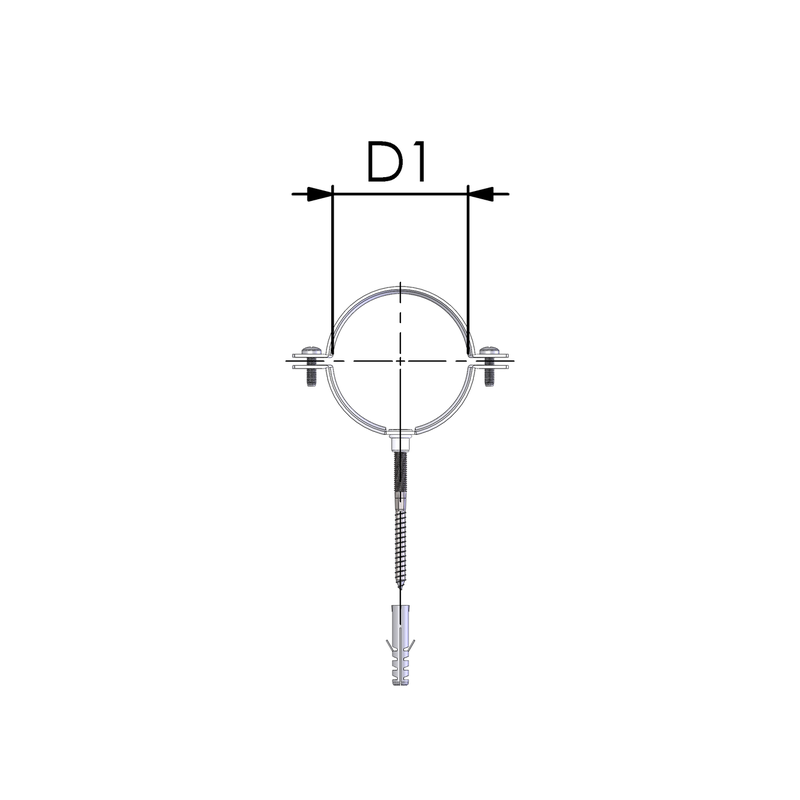

Art.nr.	Ø mm	b	3	c
AABMAA600	60	1	900	859
BABMAA600	80	1	900	859
CABMAA600	100	1	2400	859
BBBMAA600	125	1	1200	859
CBBMAA600	150	1	800	859
CNBMAA600	160	1	800	859
