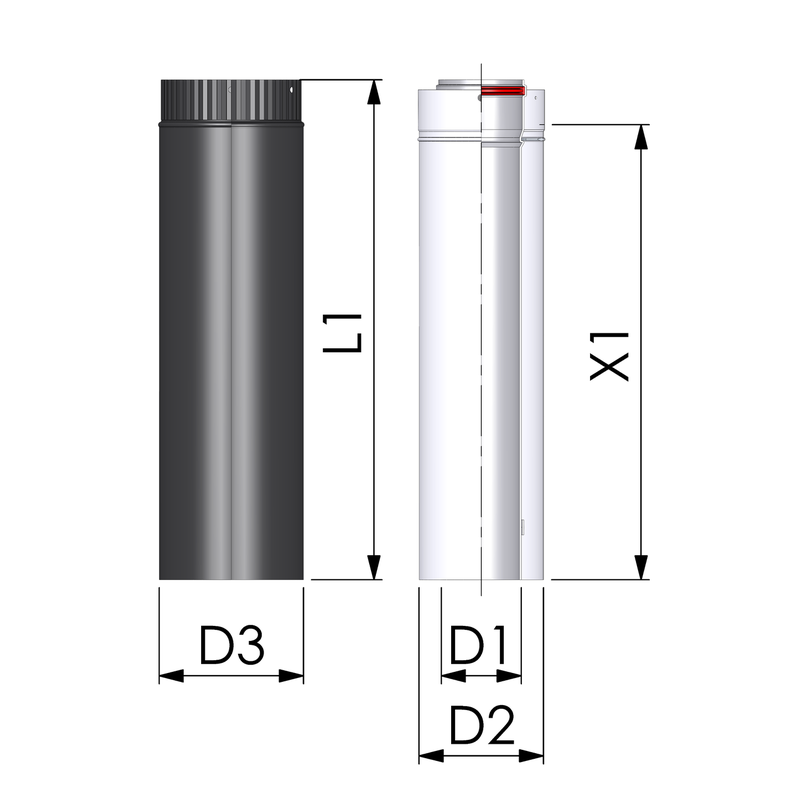

ECONEXT® upper roof extension black Ø 60/100 L500 with Alu flue pipe

Are you looking for brochures, manuals or videos of this product?

Flue gas and air supply pipe diameter:	60/100 mm
Length:	500 mm
Wall thickness inner pipe:	1.5 mm
Working length:	450 mm
Colour:	Black
Dry (non-condensing):	Yes
Material inner pipe:	Aluminium
Material outer pipe:	Aluminium
Material sealing:	Silicone
Max. medium temperature (continuous):	200 °C
Negative (negative pressure):	No
Number of lips:	2
Outer pipe-outer pipe connection:	Sleeve
Position of lips:	Straight
Positive (overpressure):	Yes
Production method for inner pipe:	Seamless
Production method for outer pipe:	Other
Quality class inner pipe:	AlMgSi 0.5 (3.3206)
RAL-number:	9005
Surface protection outer pipe:	Hot-dip galvanized
Surface treatment outer pipe:	Other
Wet (condensing):	Yes
With clamping strip:	No
With lip ring:	Yes
With pull-out protection:	No

Art.nr.	Ø mm	RAL	Length (mm)	b	3	c
ABDWAAB00	60/100	9005	500	1	54	899
ABDWAAE00	60/100	8023	500	1	54	899
BBDWAAB00	80/125	9005	500	1	54	899
BBDWAAE00	80/125	8023	500	1	54	899
