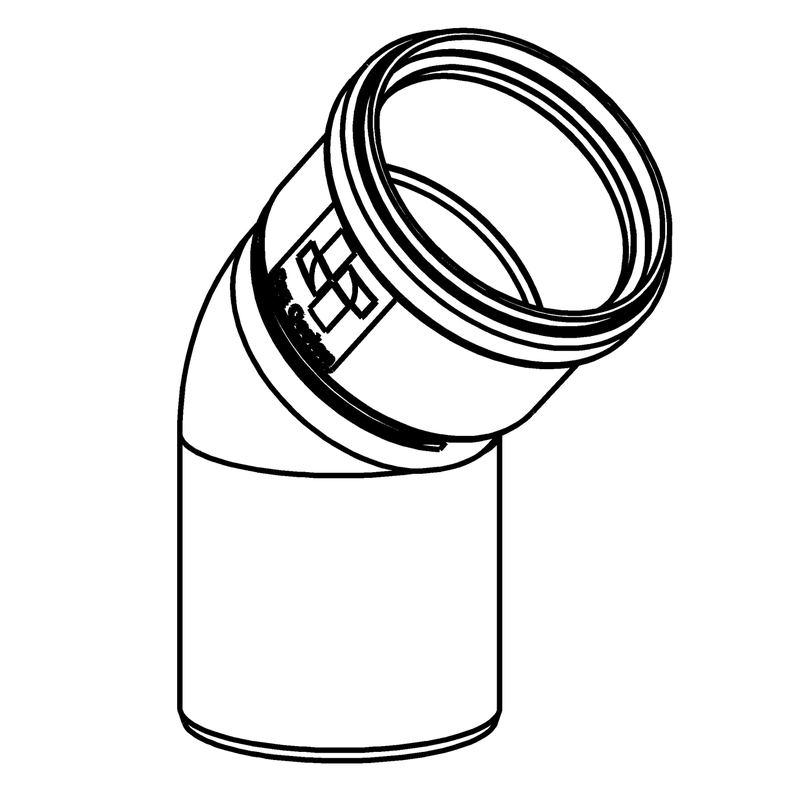

ECONEXT® PMK bend 45º Ø 60
ECONEXT® PMK bend 45º Ø 60
Are you looking for brochures, manuals or videos of this product?
| Article number: | AKAJAB501 |
|---|---|
| Packaging dimensions: | 296 x 256 x 262 mm |
| Quantity per pack: | 15 stuks |
| Number of units: | 1 stuks |
| Minimum order quantity: | 15 stuks |
| GTIN: | 08711939262248 |
| Gross weight: | 0,08 kg |
| Net weight: | 0,06 kg |
| Bend angle: | 45° |
|---|---|
| Bend radius: | 30 mm |
| Inner diameter, connection 1: | 57 mm |
| Inner diameter, connection 2: | 61 mm |
| Length: | 150 mm |
| Length of connection 1: | 70 mm |
| Length of connection 2: | 80 mm |
| Outer diameter connection 1: | 60 mm |
| Outer diameter connection 2: | 65 mm |
| Wall thickness: | 1.8 mm |
| Working length: | 105 mm |
| Working length connection 1: | 70 mm |
| Working length connection 2: | 35 mm |
| Adjustable: | No |
| Bend model: | Smooth bend |
| Colour: | Black |
| Dry (non-condensing): | No |
| Material: | Plastic |
| Material quality: | Polypropylene (PP) |
| Material sealing: | Ethylene-propylene diene monomer rubber (EPDM) |
| Max. medium temperature (continuous): | 120 °C |
| Negative (negative pressure): | No |
| Number of lips: | 2 |
| Only suitable for air supply: | No |
| Position of lips: | Straight |
| Positive (overpressure): | Yes |
| Production method: | Seamless |
| RAL-number: | 9005 |
| Shape: | Bend |
| Surface protection: | Untreated |
| Surface treatment: | Untreated |
| Wet (condensing): | Yes |
| With clamping strip: | No |
| With lip ring: | Yes |
| With measuring connector: | No |
| With pressure switch: | No |
ECONEXT® PMK bend 45º Ø 60
Available in 2 alternatives
Suitable for
