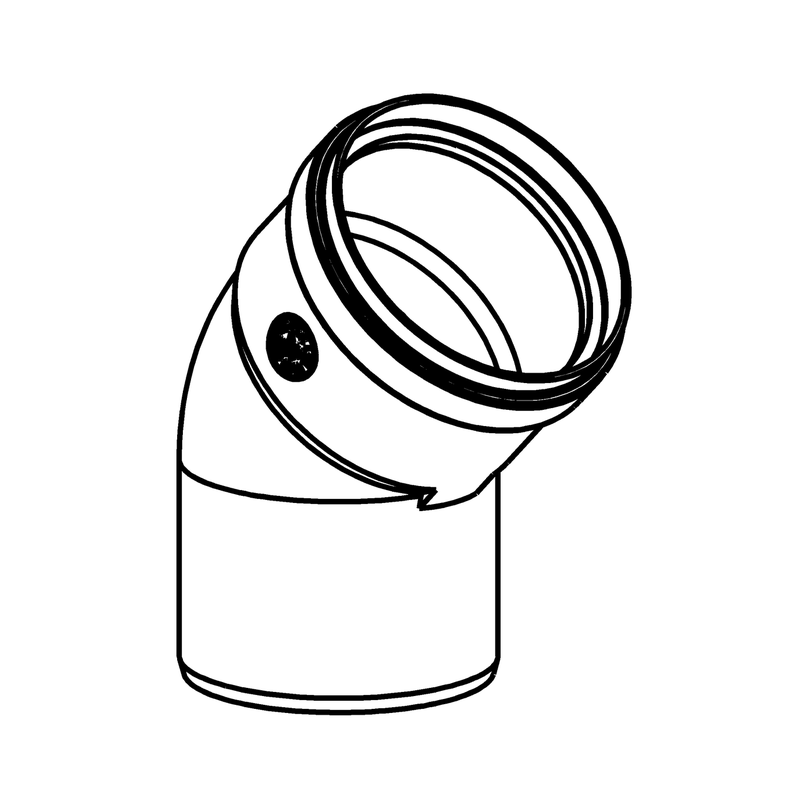

CoxFix® Alu bend 45° Ø 80 white
CoxFix® Alu bend 45° Ø 80 white
Are you looking for brochures, manuals or videos of this product?
Article number: | BAAJAA600 |
---|---|
Packaging dimensions: | 156 x 156 x 162 mm |
Quantity per pack: | 1 stuks |
Number of units: | 1 stuks |
Minimum order quantity: | 1 stuks |
GTIN: | 08711939250689 |
Gross weight: | 0,29 kg |
Net weight: | 0,22 kg |
Bend angle: | 45° |
---|---|
Bend radius: | 40 mm |
Inner diameter, connection 1: | 77 mm |
Inner diameter, connection 2: | 81 mm |
Length: | 140 mm |
Length of connection 1: | 70 mm |
Length of connection 2: | 70 mm |
Outer diameter connection 1: | 80 mm |
Outer diameter connection 2: | 84 mm |
Wall thickness: | 1.5 mm |
Working length: | 90 mm |
Working length connection 1: | 70 mm |
Working length connection 2: | 20 mm |
Adjustable: | No |
Bend model: | Smooth bend |
Colour: | White |
Dry (non-condensing): | Yes |
Material: | Aluminium |
Material quality: | Al 99.0 (3.0205) |
Material sealing: | Silicone |
Max. medium temperature (continuous): | 200 °C |
Negative (negative pressure): | Yes |
Number of lips: | 2 |
Only suitable for air supply: | No |
Position of lips: | Straight |
Positive (overpressure): | Yes |
Production method: | Seamless |
RAL-number: | 9016 |
Shape: | Bend |
Surface protection: | Untreated |
Surface treatment: | Untreated |
Wet (condensing): | Yes |
With clamping strip: | No |
With lip ring: | Yes |
With measuring connector: | No |
With pressure switch: | No |
CoxFix® Alu bend 45° Ø 80 white
Available in 4 alternatives
