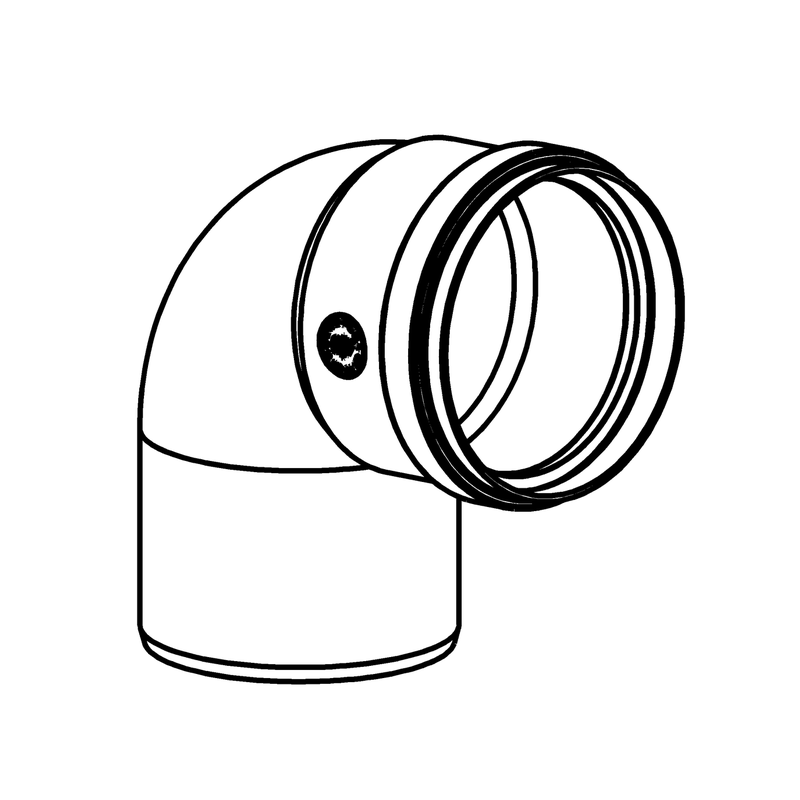

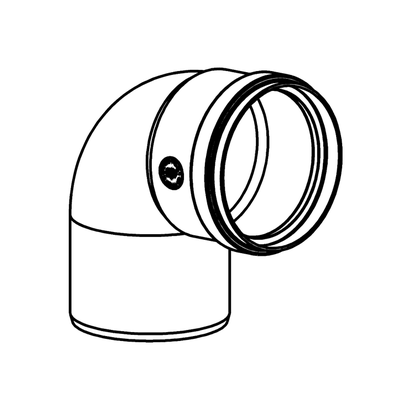

CoxFix® Alu bend 87° Ø 80 unpainted

Are you looking for brochures, manuals or videos of this product?

Bend angle:	90°
Bend radius:	40 mm
Inner diameter, connection 1:	77 mm
Inner diameter, connection 2:	81 mm
Length:	190 mm
Length of connection 1:	95 mm
Length of connection 2:	95 mm
Outer diameter connection 1:	80 mm
Outer diameter connection 2:	84 mm
Wall thickness:	1.5 mm
Working length:	140 mm
Working length connection 1:	95 mm
Working length connection 2:	45 mm
Adjustable:	No
Bend model:	Smooth bend
Dry (non-condensing):	Yes
Material:	Aluminium
Material quality:	Al 99.0 (3.0205)
Material sealing:	Silicone
Max. medium temperature (continuous):	200 °C
Negative (negative pressure):	Yes
Number of lips:	2
Only suitable for air supply:	No
Position of lips:	Straight
Positive (overpressure):	Yes
Production method:	Seamless
Shape:	Bend
Surface protection:	Untreated
Surface treatment:	Untreated
Wet (condensing):	Yes
With clamping strip:	No
With lip ring:	Yes
With measuring connector:	No
With pressure switch:	No
