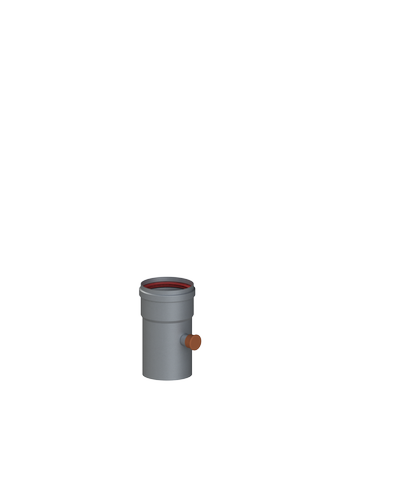

CoxFix® Alu measuring point Ø 100 unpainted

Are you looking for brochures, manuals or videos of this product?

Inner diameter, connection 1:	97 mm
Inner diameter, connection 2:	101 mm
Length:	150 mm
Length of connection 2:	150 mm
Outer diameter connection 1:	100 mm
Outer diameter connection 2:	104 mm
Wall thickness:	1.5 mm
Working length:	100 mm
Working length connection 2:	100 mm
Adjustable:	No
Dry (non-condensing):	Yes
Material:	Aluminium
Material quality:	AlMgSi 0.5 (3.3206)
Material sealing:	Silicone
Max. medium temperature (continuous):	200 °C
Negative (negative pressure):	Yes
Number of lips:	2
Only suitable for air supply:	No
Position of lips:	Straight
Positive (overpressure):	Yes
Production method:	Seamless
Shape:	Other
Surface treatment:	Untreated
Wet (condensing):	Yes
With clamping strip:	No
With lip ring:	Yes
With measuring connector:	Yes
With pressure switch:	No

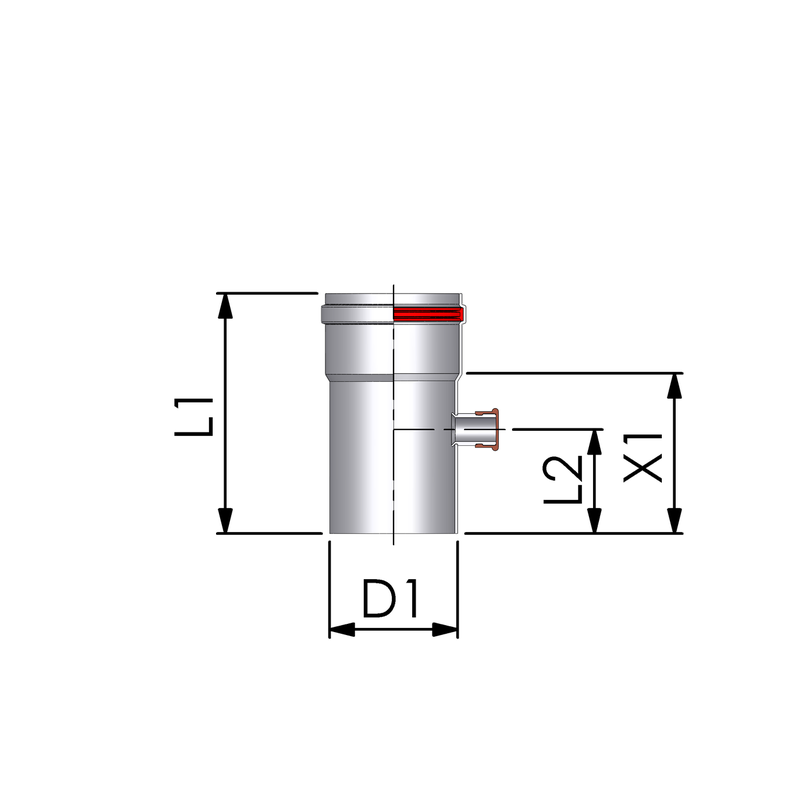

Art.nr.	Ø mm	b	3	c
BAARAA000	80	1	315	831
CAARAA000	100	1	315	831

Art.nr.	Product
CAMBAA300	Silicone sealing ring Ø 100 for Aluminium flue gas exhaust
