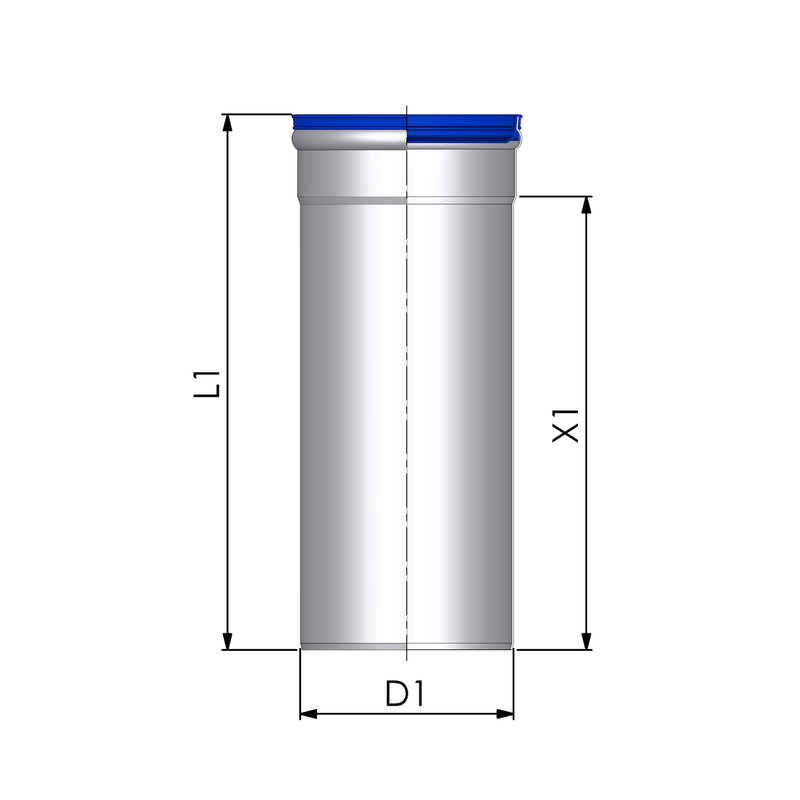

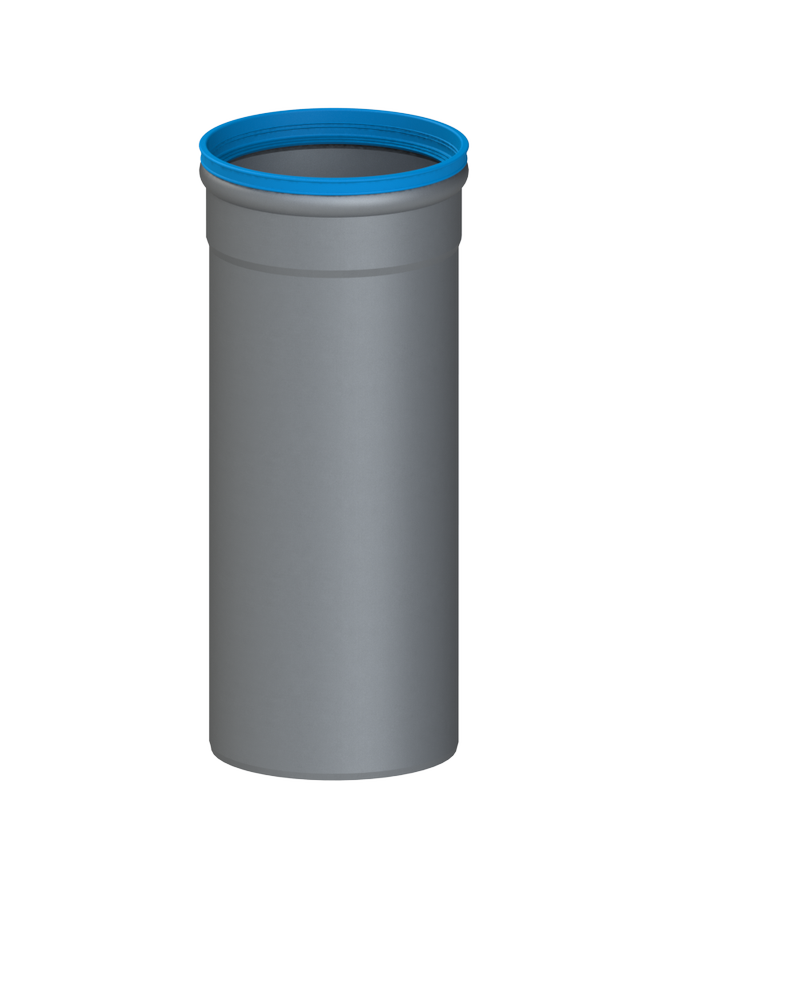

CoxFix® Alu pipe welded Ø 250 L1000 unpainted Fix-Safe sealing ring

Are you looking for brochures, manuals or videos of this product?

Inner diameter, connection 1:	247 mm
Inner diameter, connection 2:	254 mm
Length:	1000 mm
Outer diameter:	250 mm
Outer diameter connection 1:	250 mm
Outer diameter connection 2:	257 mm
Wall thickness:	1.5 mm
Working length:	950 mm
Colour:	Colourless
Dry (non-condensing):	Yes
Material:	Aluminium
Material quality:	Al 99.5 (3.0255)
Material sealing:	Silicone
Max. medium temperature (continuous):	200 °C
Negative (negative pressure):	Yes
Number of lips:	2
Only suitable for air supply:	No
Position of lips:	Straight
Positive (overpressure):	Yes
Production method:	Seamless weld (butt)
Surface protection:	Untreated
Surface treatment:	Untreated
Wet (condensing):	Yes
With clamping strip:	No
With lip ring:	Yes
With pull-out protection:	No

Art.nr.	Ø mm	Length (mm)	b	3	c
253251	250	1000	4	24	831
