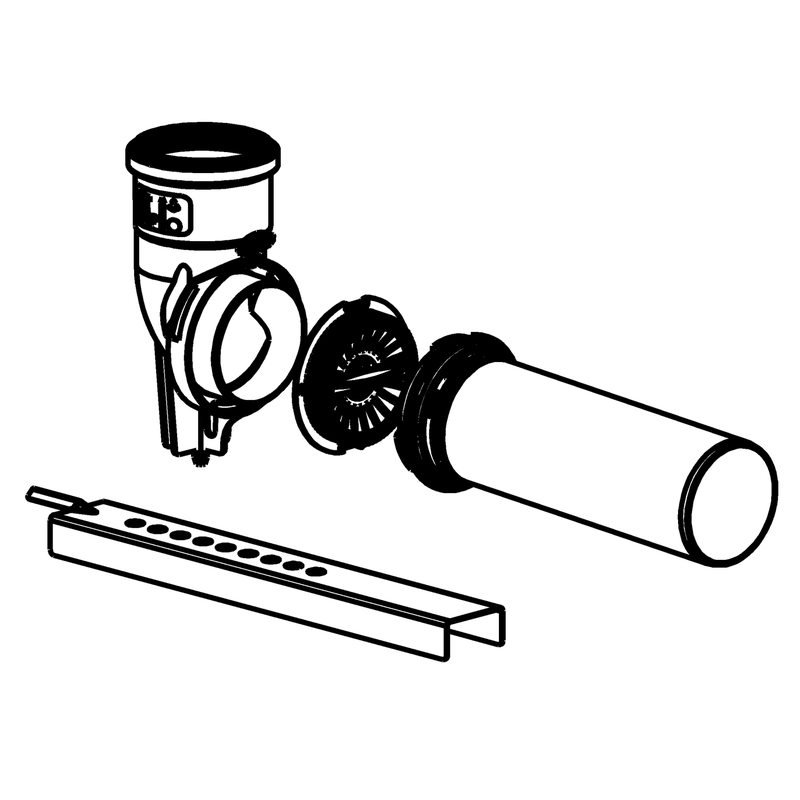

CoxDENS® PP compact chimney bend 87° Ø 80 with support
CoxDENS® PP compact chimney bend 87° Ø 80 with support
Are you looking for brochures, manuals or videos of this product?
| Article number: | BKPHAA601 |
|---|---|
| Packaging dimensions: | 510 x 133 x 140 mm |
| Quantity per pack: | 1 stuks |
| Number of units: | 1 stuks |
| Minimum order quantity: | 1 stuks |
| GTIN: | 08711939266567 |
| Gross weight: | 0,77 kg |
| Net weight: | 0,55 kg |
| Bend angle: | 87° |
|---|---|
| Bend radius: | 40 mm |
| Inner diameter, connection 1: | 76 mm |
| Inner diameter, connection 2: | 81 mm |
| Length: | 408 mm |
| Length of connection 1: | 290 mm |
| Length of connection 2: | 118 mm |
| Outer diameter connection 1: | 80 mm |
| Outer diameter connection 2: | 85 mm |
| Wall thickness: | 2 mm |
| Working length connection 1: | 290 mm |
| Working length connection 2: | 65 mm |
| Adjustable: | No |
| Bend model: | Smooth bend |
| Colour: | White |
| Dry (non-condensing): | No |
| Material: | Plastic |
| Material quality: | Polypropylene (PP) |
| Material sealing: | Ethylene-propylene diene monomer rubber (EPDM) |
| Max. medium temperature (continuous): | 120 °C |
| Negative (negative pressure): | No |
| Number of lips: | 2 |
| Only suitable for air supply: | No |
| Position of lips: | Straight |
| Positive (overpressure): | Yes |
| Production method: | Seamless |
| RAL-number: | 9016 |
| Shape: | Bend |
| Surface protection: | Untreated |
| Surface treatment: | Untreated |
| Wet (condensing): | Yes |
| With clamping strip: | No |
| With lip ring: | Yes |
| With measuring connector: | No |
| With pressure switch: | No |
CoxDENS® PP compact chimney bend 87° Ø 80 with support
Available in 1 alternatives
| Art.nr. | Ø mm | RAL | b | 3 | c |
|---|---|---|---|---|---|
| BKPHAA601 | 80 | 9016 | 1 | 143 | 841 |
