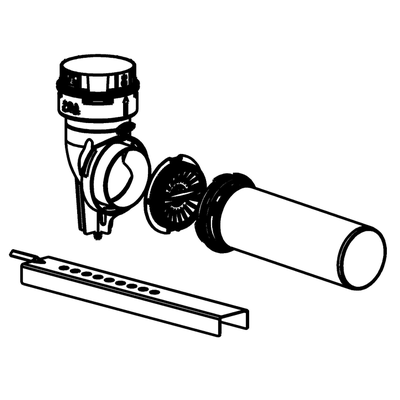

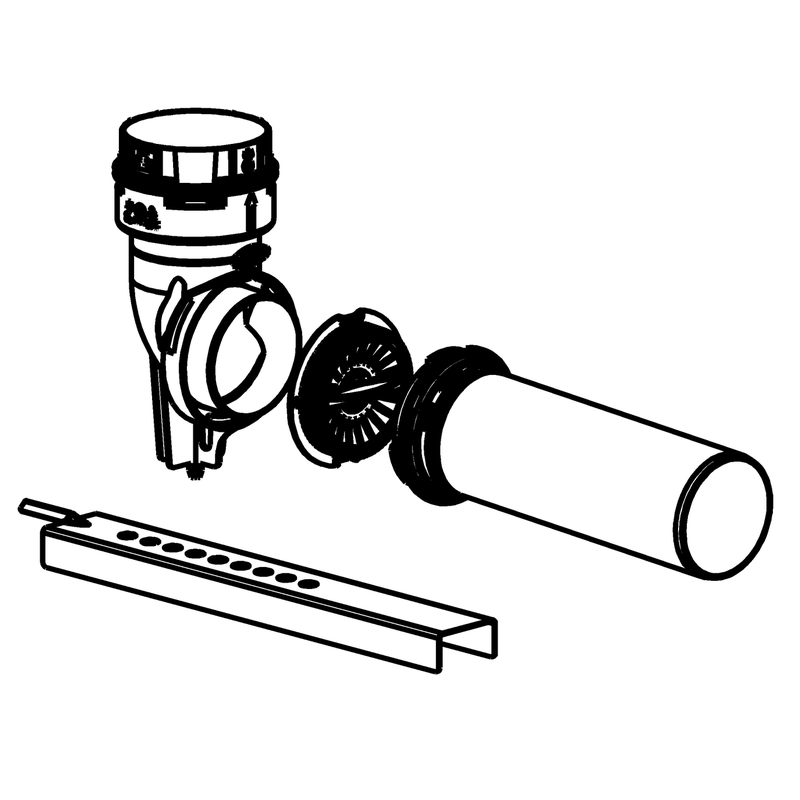

CoxDENS® PP Flex compact chimney bend 87° Ø 80 with support

Are you looking for brochures, manuals or videos of this product?

Bend angle:	87°
Bend radius:	40 mm
Inner diameter, connection 1:	76 mm
Inner diameter, connection 2:	81 mm
Length:	415 mm
Length of connection 1:	290 mm
Length of connection 2:	125 mm
Outer diameter connection 1:	80 mm
Outer diameter connection 2:	85 mm
Wall thickness:	2 mm
Working length connection 1:	290 mm
Working length connection 2:	75 mm
Adjustable:	No
Bend model:	Smooth bend
Colour:	White
Dry (non-condensing):	No
Material:	Plastic
Material quality:	Polypropylene (PP)
Material sealing:	Ethylene-propylene diene monomer rubber (EPDM)
Max. medium temperature (continuous):	120 °C
Negative (negative pressure):	No
Number of lips:	2
Only suitable for air supply:	No
Position of lips:	Straight
Positive (overpressure):	Yes
Production method:	Seamless
RAL-number:	9016
Shape:	Bend
Surface protection:	Untreated
Surface treatment:	Untreated
Wet (condensing):	Yes
With clamping strip:	No
With lip ring:	No
With measuring connector:	No
With pressure switch:	No

Art.nr.	Ø mm	RAL	b	3	c
BRPHAA601	80	9016	1	143	843

Art.nr.	Product
BRMBAA501	EPDM sealing ring Ø 80 for CoxDENS® PP Flex products

Suitable for
