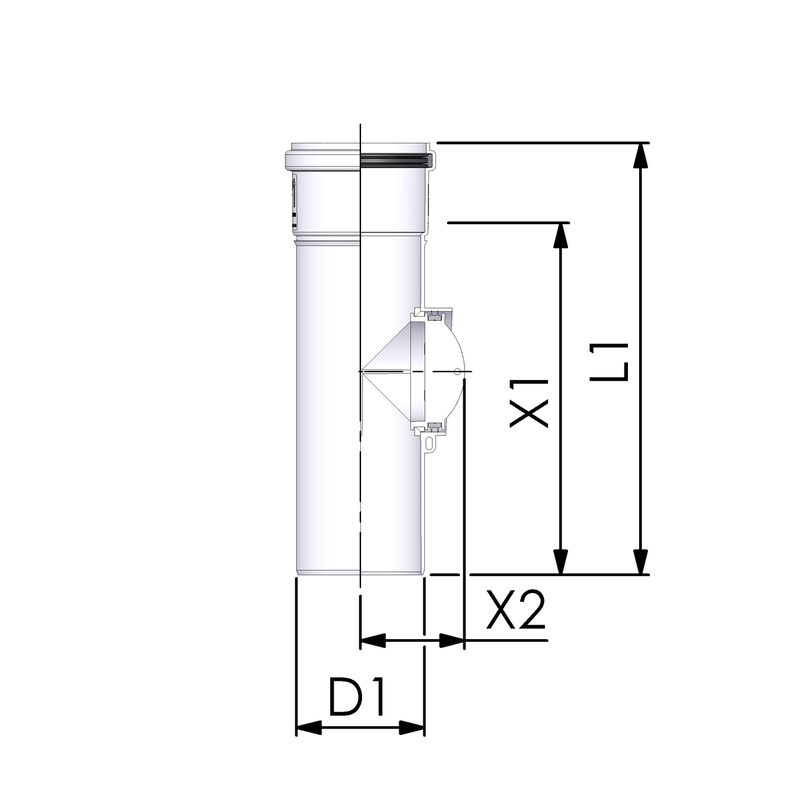

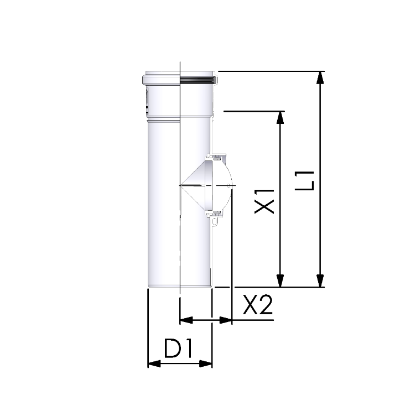

CoxDENS® PP inspection piece Ø 100

Are you looking for brochures, manuals or videos of this product?

Inner diameter, connection 1:	96 mm
Inner diameter, connection 2:	101 mm
Length:	270 mm
Length of connection 2:	270 mm
Outer diameter connection 1:	100 mm
Outer diameter connection 2:	105 mm
Wall thickness:	2 mm
Working length:	90 mm
Working length connection 2:	90 mm
Adjustable:	No
Colour:	White
Dry (non-condensing):	No
Material:	Plastic
Material quality:	Polypropylene (PP)
Material sealing:	Ethylene-propylene diene monomer rubber (EPDM)
Max. medium temperature (continuous):	120 °C
Negative (negative pressure):	No
Number of lips:	2
Only suitable for air supply:	No
Position of lips:	Straight
Positive (overpressure):	Yes
Production method:	Other
RAL-number:	9016
Shape:	Inspection piece, straight
Surface protection:	Untreated
Surface treatment:	Untreated
Wet (condensing):	Yes
With clamping strip:	No
With lip ring:	Yes
With measuring connector:	No

Art.nr.	Ø mm	RAL	b	3	c
AKAMAA601	60	9016	1	200	841
BKAMAB601	80	9016	6	360	841
BKAMAA601	80	9016	1	200	841
CLAMAA600	100	9016	1	200	841
CLAMAB600	100	9016	5	240	841
CKAMAA700	110	7037	1	200	841
CZAMAA700	125	7037	1	180	841
DKAMAA700	160	7037	1	62	841
EKAMAA700	200	7037	1	30	841
FKAMAA700	250	7037	24	24	841
