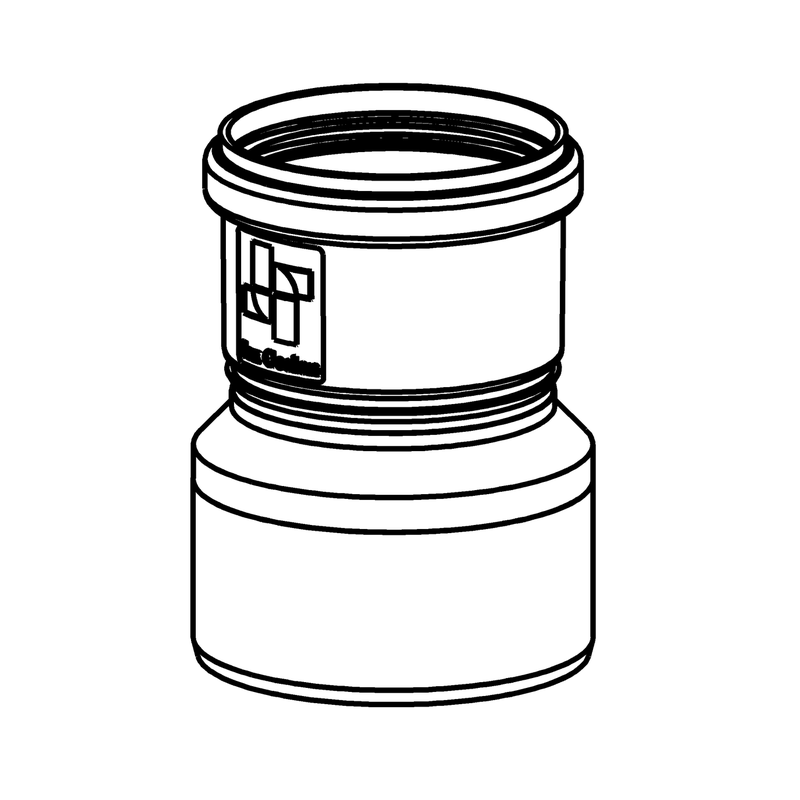

CoxDENS® PP reduction Ø 80 - 60 centric

Are you looking for brochures, manuals or videos of this product?

Inner diameter, connection 1:	76 mm
Inner diameter, connection 2:	61 mm
Length:	135 mm
Length of connection 2:	135 mm
Outer diameter connection 1:	80 mm
Outer diameter connection 2:	65 mm
Wall thickness:	2 mm
Working length:	90 mm
Working length connection 2:	90 mm
Adjustable:	No
Colour:	White
Dry (non-condensing):	No
Material:	Plastic
Material quality:	Polyethylene (PE)
Material sealing:	Ethylene-propylene diene monomer rubber (EPDM)
Max. medium temperature (continuous):	120 °C
Negative (negative pressure):	No
Number of lips:	2
Only suitable for air supply:	No
Position of lips:	Straight
Positive (overpressure):	Yes
Production method:	Other
RAL-number:	9016
Shape:	Reduction/enlargement piece
Surface protection:	Untreated
Surface treatment:	Untreated
Wet (condensing):	Yes
With clamping strip:	No
With lip ring:	Yes
With measuring connector:	No
With pressure switch:	No

Art.nr.	Ø mm	RAL	b	3	c
AKHXAA601	80 - 60	9016	1	315	841
BKHXAA601	100 - 80	9016	1	315	841
CLHXAA600	110 - 100	9016	1	240	841

Art.nr.	Product
AKMBAA501	EPDM sealing ring Ø 60 for CoxDENS® PP flue gas exhaust products
