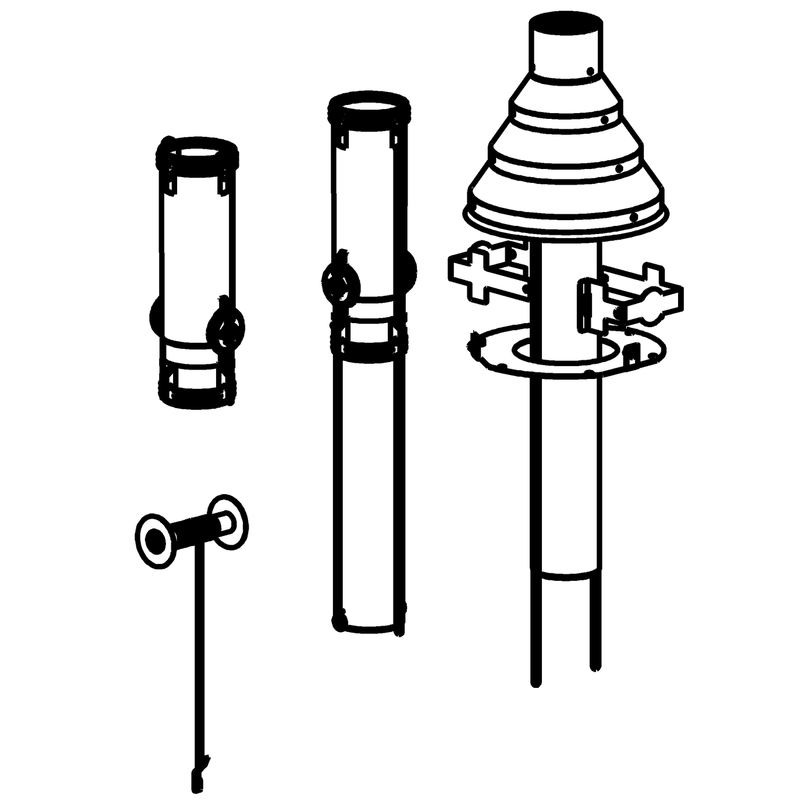

CoxHYBRID® CFS PP roof term. Ø130+bottom section to reline classic CFS
CoxHYBRID® CFS PP roof term. Ø130+bottom section to reline classic CFS
Are you looking for brochures, manuals or videos of this product?
| Article number: | WBNXAA400 |
|---|---|
| Packaging dimensions: | 600 x 400 x 1120 mm |
| Quantity per pack: | 1 stuks |
| Number of units: | 1 stuks |
| Minimum order quantity: | 1 stuks |
| GTIN: | 08711939266734 |
| Gross weight: | 10,92 kg |
| Net weight: | 9,22 kg |
| Diameter of single-walled system: | 130 mm |
|---|---|
| Length above roof (including cover): | 1100 mm |
| Colour below the roof: | White |
| Colour on the roof: | Black |
| Dry (non-condensing): | No |
| Icicle/icing-free: | Yes |
| Material air supply pipe: | Aluminium |
| Material flue pipe: | Plastic |
| Max. medium temperature (continuous): | 120 °C |
| Negative (negative pressure): | No |
| Positive (overpressure): | Yes |
| Quality class flue pipe: | Polypropylene (PP) |
| RAL-number below the roof: | 9016 |
| RAL-number on the roof: | 9005 |
| Surface protection air supply pipe: | Coated |
| Surface protection flue: | Untreated |
| Surface treatment air supply pipe: | Untreated |
| Type of system: | Single-walled |
| Wet (condensing): | Yes |
| With mechanical ventilation connection: | No |
| With sliding plate: | No |
CoxHYBRID® CFS PP roof term. Ø130+bottom section to reline classic CFS
Available in 2 alternatives
Suitable for
CoxHYBRID® CFS PP roof terminal Ø 130 black with bottom section
CoxHYBRID® CFS PP tool kit
CoxHYBRID® CFS PP flat flashing Ø 130
CoxHYBRID® PP/pl fire resistant wall plate Ø 60/100 with fire seal
CoxHYBRID® PP/plastic wall plate Ø 60/100
CoxHYBRID® wall plate RO PP/metal Ø60/100 with fire collar
CoxHYBRID® PP/metal wall plate Ø 60/100
CoxHYBRID® Kit C12 wall plate PP pipe and wall terminal air supply Ø60
CoxHYBRID® support for 90° connection Ø 130
CoxHYBRID® PP/Alu cover plate Ø 60/100 to reline classic CFS
CoxHYBRID® CFS PP Set of 2 pipe sections Ø 130 for 1 floor
CoxHYBRID® ventilation wall plate Ø 125 - switch CFS/MV
