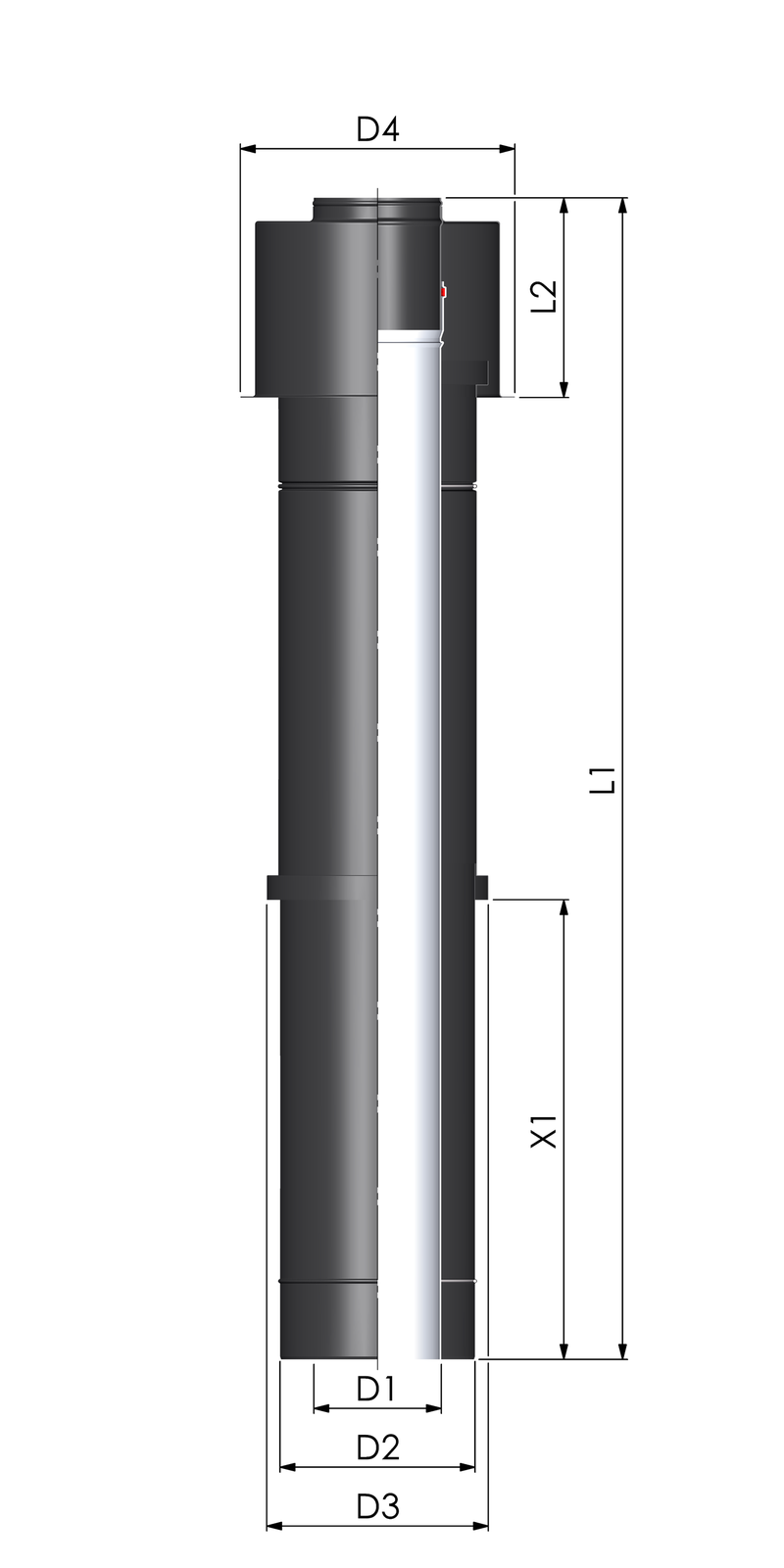

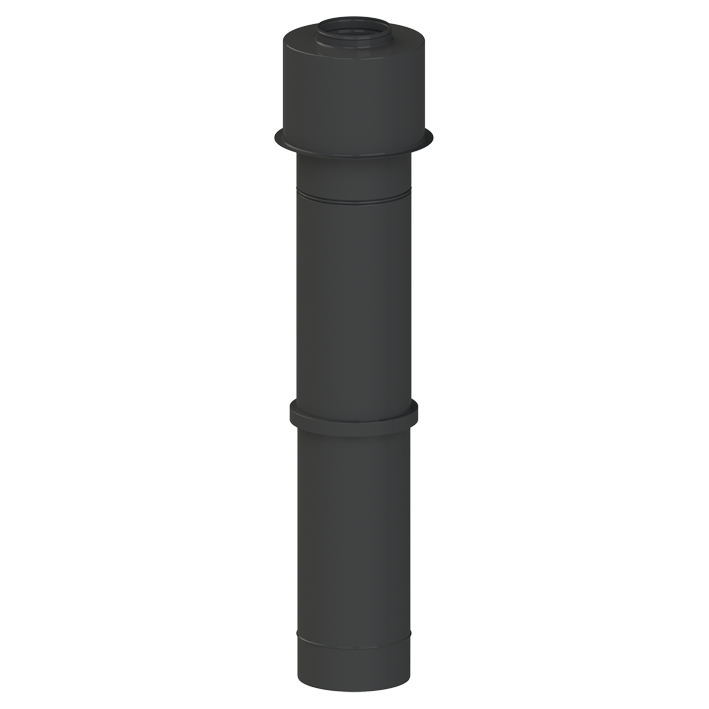

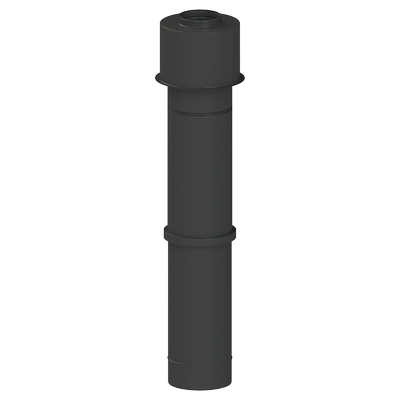

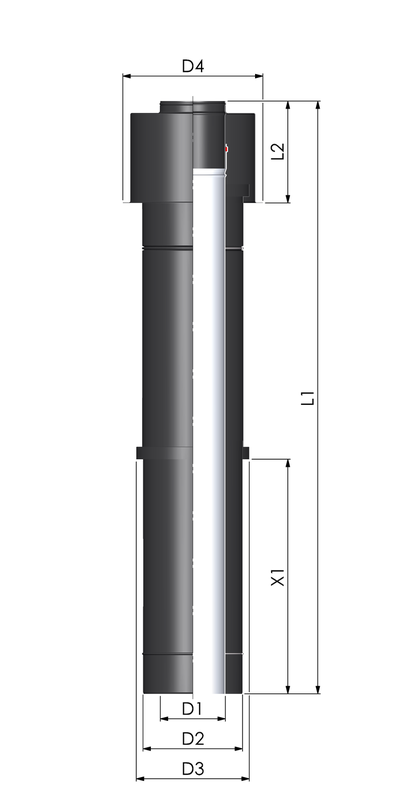

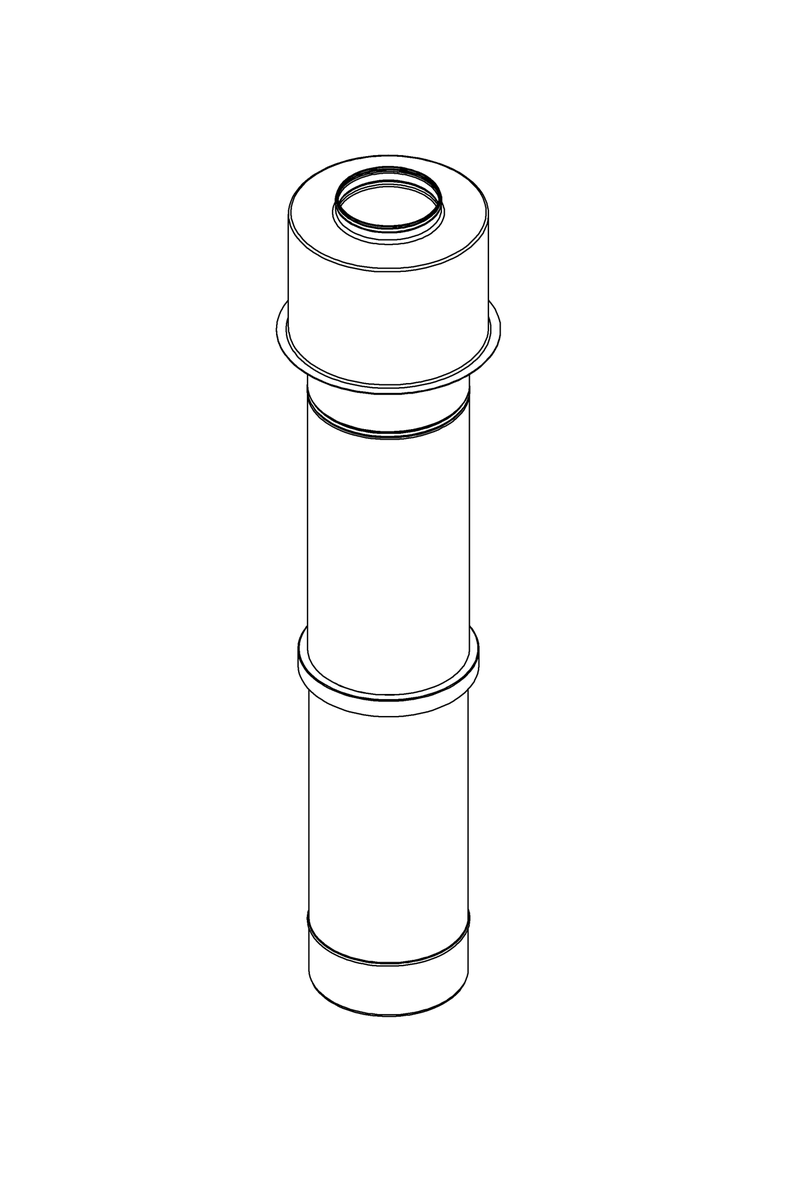

CoxStant® roof terminal condensing black Ø 130/200 with Alu flue pipe

Are you looking for brochures, manuals or videos of this product?

Diameter of concentric system:	130/200 mm
Length above roof (including cover):	679 mm
Total length:	1185 mm
Colour below the roof:	Black
Colour on the roof:	Black
Dry (non-condensing):	No
Icicle/icing-free:	Yes
Material air supply pipe:	Steel
Material flue pipe:	Aluminium
Max. medium temperature (continuous):	160 °C
Negative (negative pressure):	No
Positive (overpressure):	Yes
Quality class flue pipe:	Al 99.5 (3.0255)
RAL-number below the roof:	9005
RAL-number on the roof:	9005
Surface protection air supply pipe:	Hot-dip galvanized
Surface treatment air supply pipe:	Other
Type of system:	Concentric
Wet (condensing):	Yes
With mechanical ventilation connection:	No
With sliding plate:	No

Art.nr.	Ø mm	RAL	Length (mm)	b	3	c
CBBXAA300	100/150	8023	1145	1	18	895
277227	130/200	9005	1185	1	6	895
