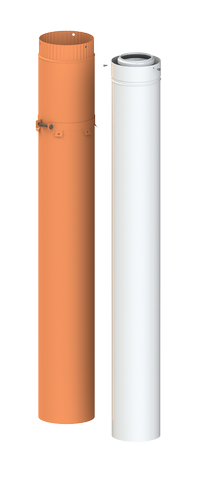

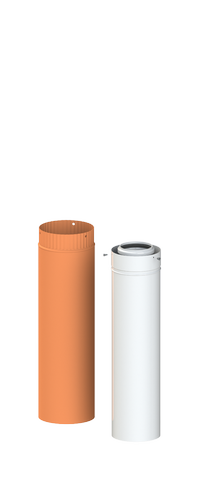

ECONEXT® roof terminal condensing terra Ø 60/100 with PP flue pipe

Are you looking for brochures, manuals or videos of this product?

Diameter of concentric system:	60/100 mm
Length above roof (including cover):	543 mm
Total length:	1151 mm
Colour below the roof:	White
Colour on the roof:	Red
Dry (non-condensing):	No
Icicle/icing-free:	Yes
Material air supply pipe:	Steel
Material flue pipe:	Plastic
Max. medium temperature (continuous):	120 °C
Negative (negative pressure):	No
Positive (overpressure):	Yes
Quality class flue pipe:	Polypropylene (PP)
RAL-number below the roof:	9016
RAL-number on the roof:	8023
Surface protection air supply pipe:	Hot-dip galvanized
Surface protection flue:	Untreated
Surface treatment air supply pipe:	Other
Wet (condensing):	Yes
With mechanical ventilation connection:	No
With sliding plate:	No

Art.nr.	Ø mm	RAL	Length (mm)	b	3	c
ADDFAAB01	60/100	9005	1151	1	32	896
ADDFAAE01	60/100	8023	1151	1	32	896
ADNAAAB01	60/100	9005	1301	1	20	896
BDDFAAB01	80/125	9005	1158	1	32	896
BDDFAAE01	80/125	8023	1158	1	32	896
BDNAAAB01	80/125	9005	1301	1	20	896
BDNAAAE01	80/125	8023	1301	1	20	896
