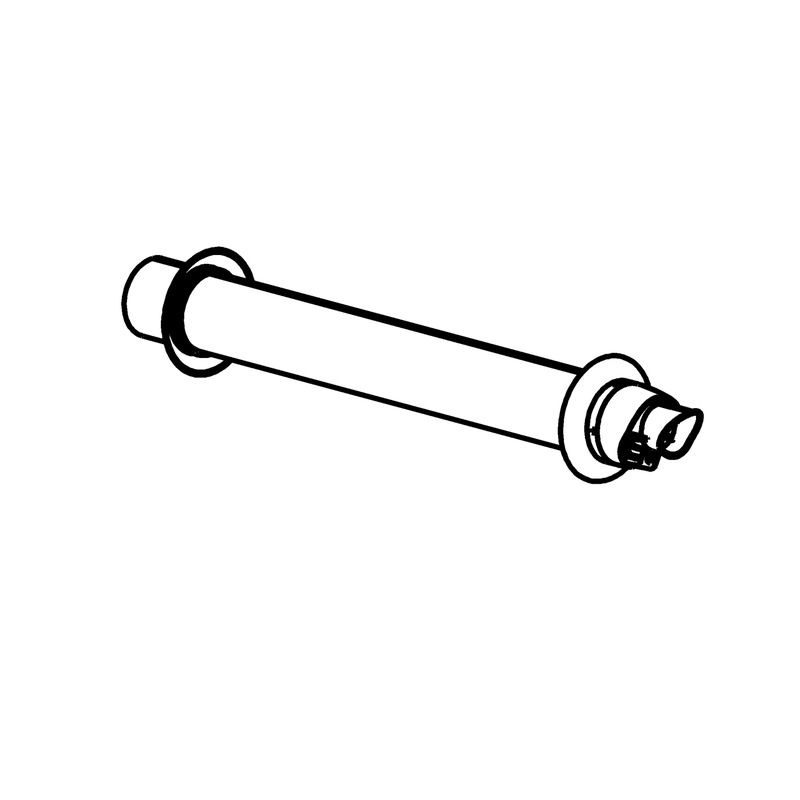

ECONEXT® plastic wall terminal 2.0 condensing Ø 60/100 PP flue pipe

Are you looking for brochures, manuals or videos of this product?

Diameter of concentric system:	60/100 mm
Façade side length:	153 mm
Total length:	1120 mm
Dry (non-condensing):	No
Façade side colour:	Grey
Icicle/icing-free:	Yes
Inside colour:	White
Material air supply pipe:	Plastic
Material flue pipe:	Plastic
Max. medium temperature (continuous):	120 °C
Negative (negative pressure):	No
Only suitable for air supply:	No
Outflow construction:	1-pipe
Positive (overpressure):	Yes
Quality class flue pipe:	Polypropylene (PP)
RAL-number façade side:	7001
RAL-number inside:	9016
Type of system:	Concentric
Wet (condensing):	Yes

Art.nr.	Ø mm	RAL	Length (mm)	b	3	c
AJPAAA601	60/100	9016	1120	1	56	866
