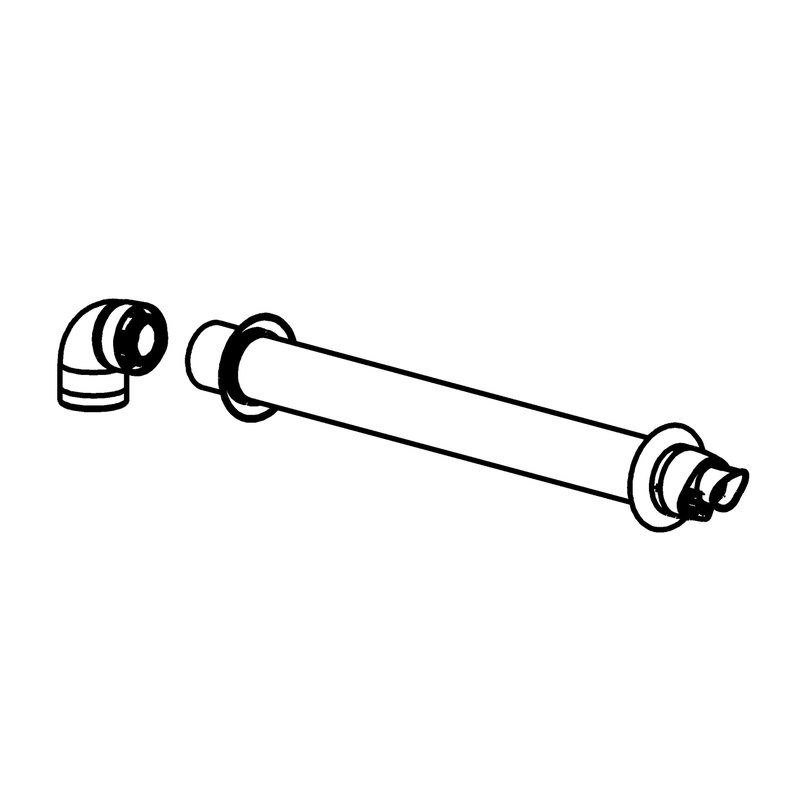

ECONEXT® wall terminal 2.0 condensing kit Ø 60/100 L1000 PP flue pipe

Are you looking for brochures, manuals or videos of this product?

Diameter of concentric system:	60/100 mm
Façade side length:	153 mm
Total length:	955 mm
Dry (non-condensing):	No
Façade side colour:	Grey
Icicle/icing-free:	Yes
Inside colour:	White
Material air supply pipe:	Steel
Material flue pipe:	Plastic
Max. medium temperature (continuous):	120 °C
Negative (negative pressure):	Yes
Only suitable for air supply:	No
Outflow construction:	1-pipe
Positive (overpressure):	Yes
Quality class flue pipe:	Polypropylene (PP)
RAL-number façade side:	7001
RAL-number inside:	9016
Surface protection air supply pipe:	Hot-dip galvanized
Type of system:	Concentric
Wet (condensing):	Yes

Art.nr.	Ø mm	RAL	Length (mm)	b	3	c
ADPBAA601	60/100	9016	955	1	56	866
