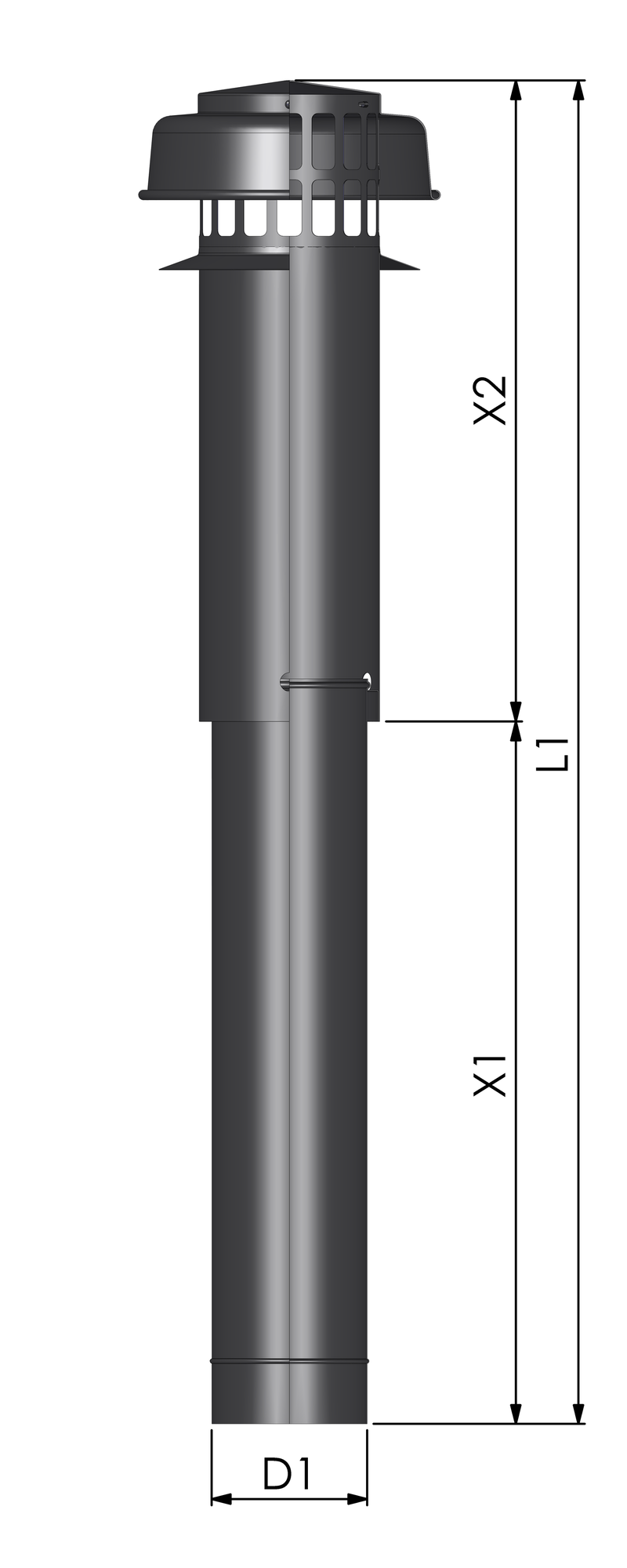

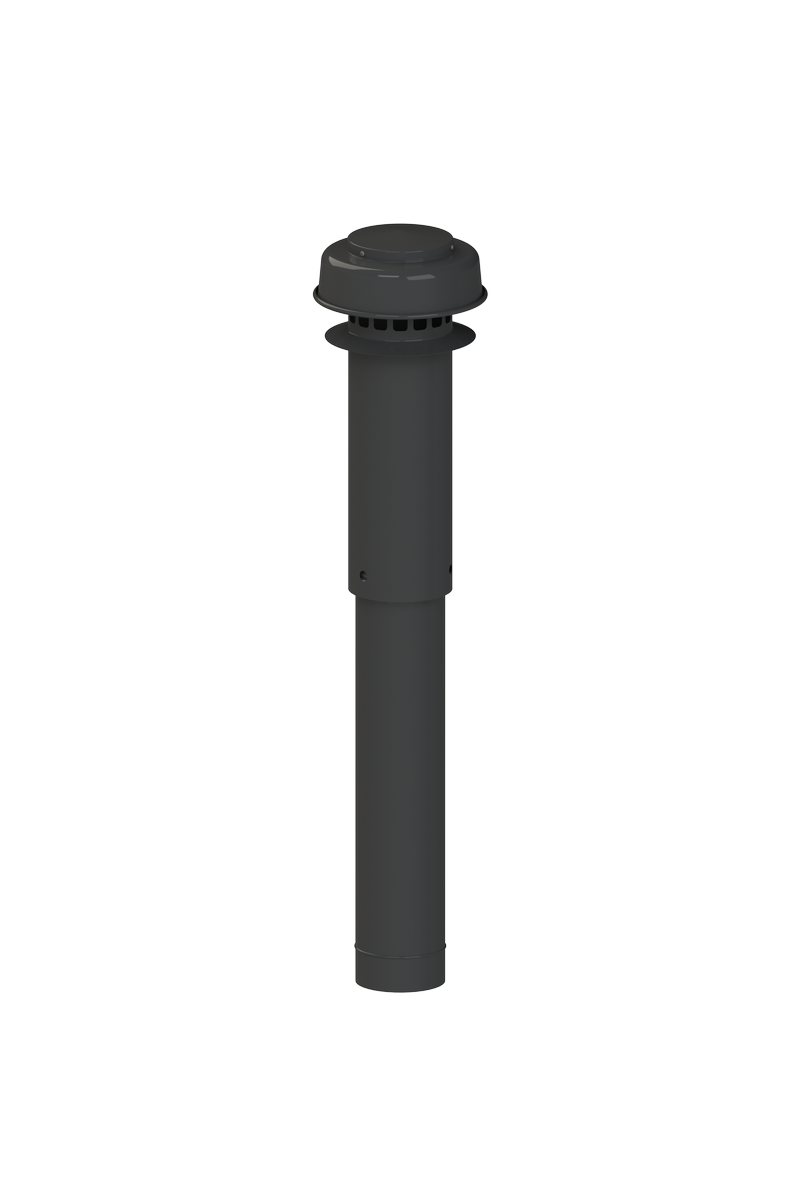

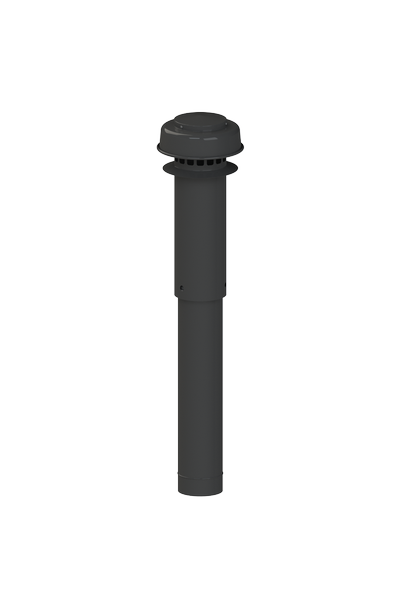

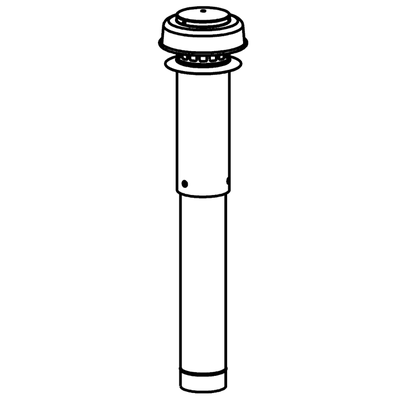

CoxTrek® ventilation roof terminal Ø 125 MV/NV L=1310
CoxTrek® ventilation roof terminal Ø 125 MV/NV L=1310
Are you looking for brochures, manuals or videos of this product?
Article number: | 277252 |
---|---|
Packaging dimensions: | 543 x 543 x 1082 mm |
Quantity per pack: | 4 stuks |
Number of units: | 1 stuks |
Minimum order quantity: | 4 stuks |
GTIN: | 08711939024266 |
Gross weight: | 3,73 kg |
Net weight: | 2,93 kg |
Cover outer diameter: | 233 mm |
---|---|
Nominal duct diameter: | 125 mm |
Operating height: | 500 mm |
Colour cap: | Black |
Connection: | Insert end |
Free passage: | 0.03 m² |
Lamella model: | No |
Lead flashing on all sides: | No |
Material of cap: | Aluminium |
Suitable for suction: | Yes |
Surface treatment cap: | Other |
Vertical exhausting: | Yes |
With gauze: | No |
With pre-mounted seal: | No |
With roof flashing: | No |
With storm collar: | No |
CoxTrek® ventilation roof terminal Ø 125 MV/NV L=1310
Available in 2 alternatives
Suitable for
Airtight duct seal 0°-50° roof terminals Ø 60/100 and Ø 80/125
PE swivel Ø 110-125 black
Adjustable lead flashing 25°-45° Ø 90-125 black without swivel
Adjustable lead flashing 35°-55°Ø 90-125 black without swivel
