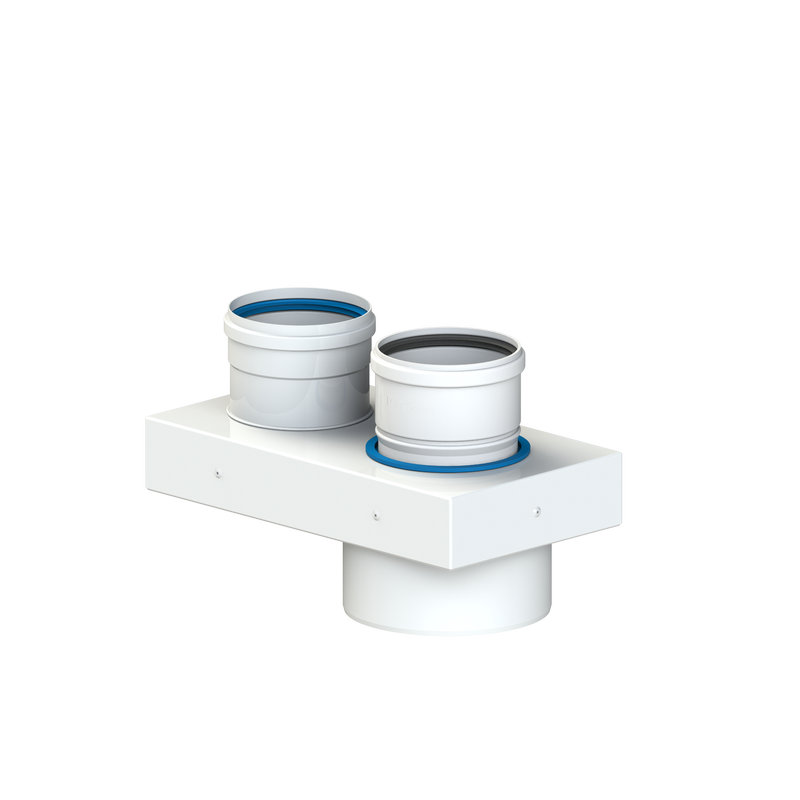

CoxDENS® PP/Alu adapter concentric - twin-pipe Ø 100/150 - 100/100

Are you looking for brochures, manuals or videos of this product?

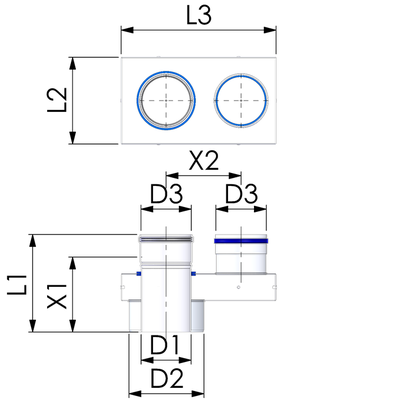

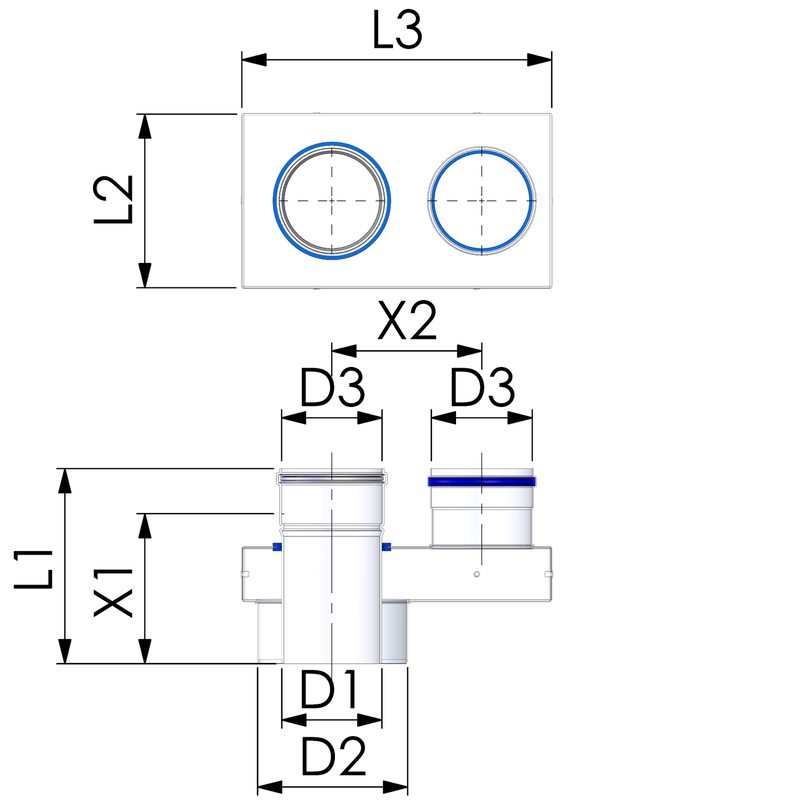

Distance centre-to-centre:	150 mm
Nominal duct diameter, top:	100/100 mm
Nominal duct diameter, underside:	100/150 mm
Working length:	140 mm
Coated:	Yes
Material:	Plastic
System connection, underside/top:	Concentric/parallel
With measuring points:	No

Art.nr.	Ø mm	b	3	c
CWBCAA600	100/150 - 100/100	1	64	881

Suitable for
