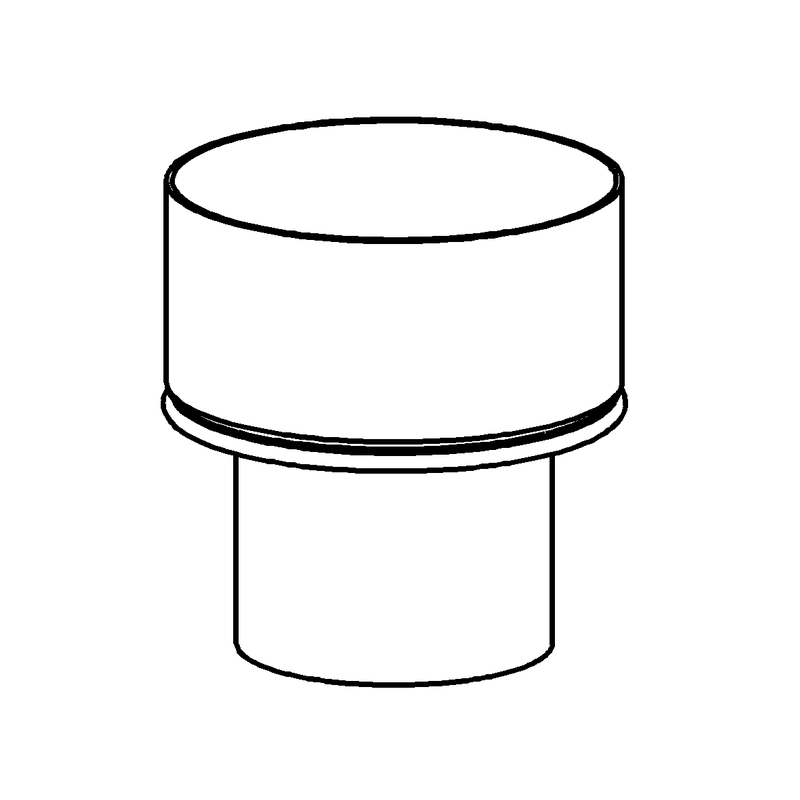

Blued steel expansion Ø 150 - 180

Are you looking for brochures, manuals or videos of this product?

Inner diameter, connection 1:	148 mm
Inner diameter, connection 2:	180 mm
Length:	120 mm
Length of connection 2:	120 mm
Outer diameter connection 1:	149 mm
Outer diameter connection 2:	181 mm
Wall thickness:	0.5 mm
Working length:	70 mm
Working length connection 2:	70 mm
Adjustable:	No
Colour:	Black
Dry (non-condensing):	Yes
Material:	Steel
Material quality:	Other
Max. medium temperature (continuous):	250 °C
Negative (negative pressure):	Yes
Only suitable for air supply:	No
Positive (overpressure):	No
Production method:	Longitudinal welded joint
Shape:	Reduction/enlargement piece
Surface protection:	Blue-annealed
Surface treatment:	Untreated
Wet (condensing):	No
With clamping strip:	No
With lip ring:	No
With measuring connector:	No
With pressure switch:	No
With temperature limit:	No
