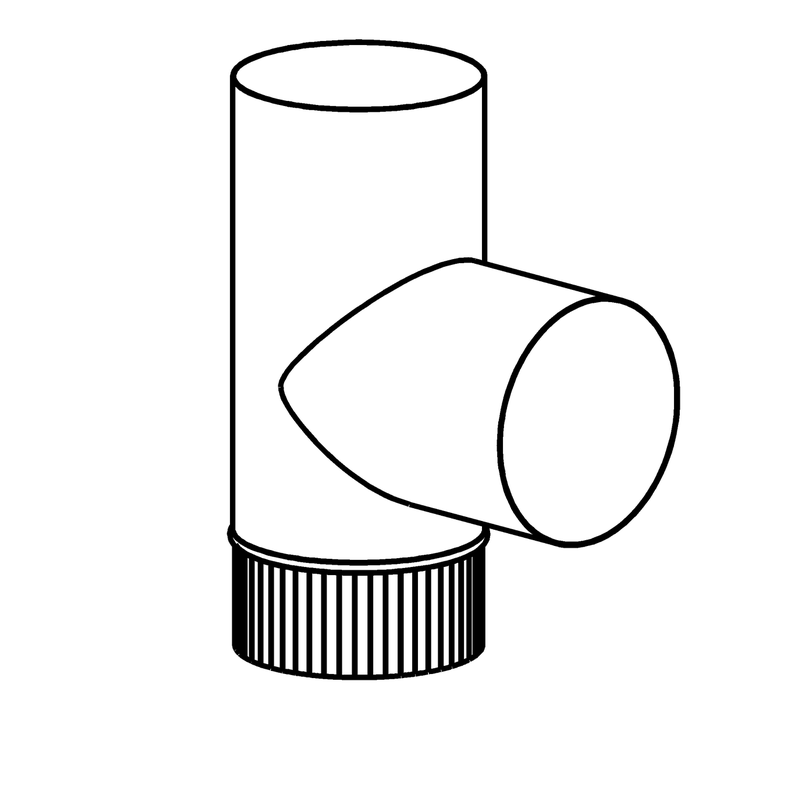

Blued steel T-piece 90º Ø 150

Are you looking for brochures, manuals or videos of this product?

Angle of connection 3 (branch angle):	90°
Length of connection 2:	330 mm
Length of connection 3:	185 mm
Outer diameter connection 1:	149 mm
Outer diameter connection 2:	151 mm
Outer diameter connection 3:	151 mm
Wall thickness:	0.5 mm
Working length connection 2:	280 mm
Working length connection 3:	135 mm
Colour:	Black
Connection 1:	Shrink end
Connection 2:	Insert end
Connection 3:	Insert end
Dry (non-condensing):	Yes
Material:	Steel
Material quality:	Other
Max. medium temperature (continuous):	250 °C
Model:	T-piece
Negative (negative pressure):	Yes
Positive (overpressure):	No
Production method:	Longitudinal welded joint
Surface protection:	Blue-annealed
Surface treatment:	Untreated
Wet (condensing):	No
With clamping strip:	No
With drain valve:	No
With lip ring:	No
