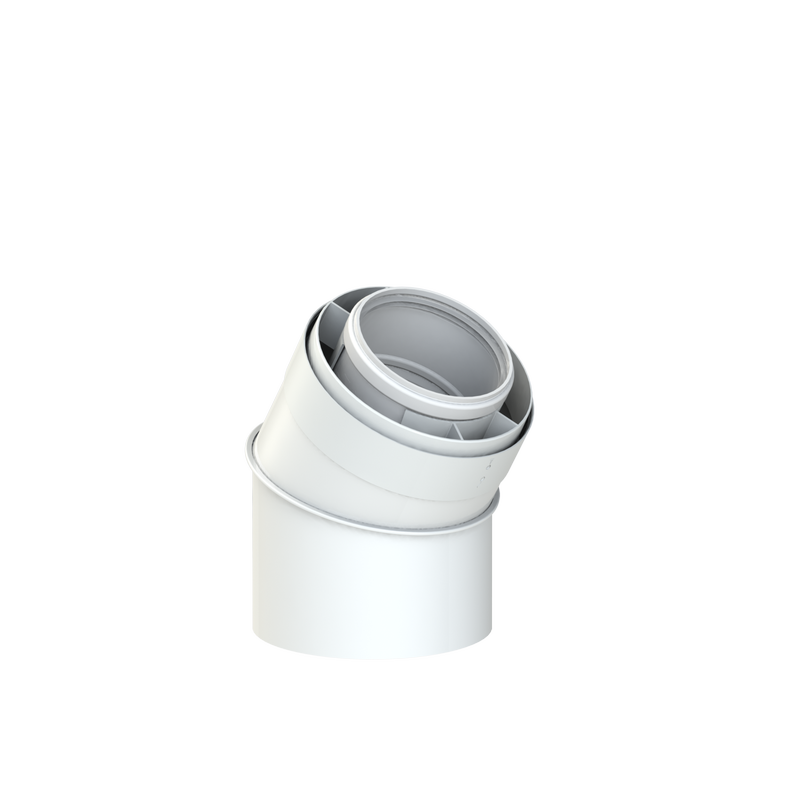

CoxDENS® PP/Alu bend 30° Ø 100/150 with CONNEXT® X7

Are you looking for brochures, manuals or videos of this product?

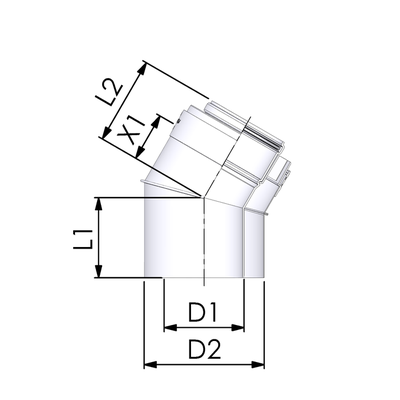

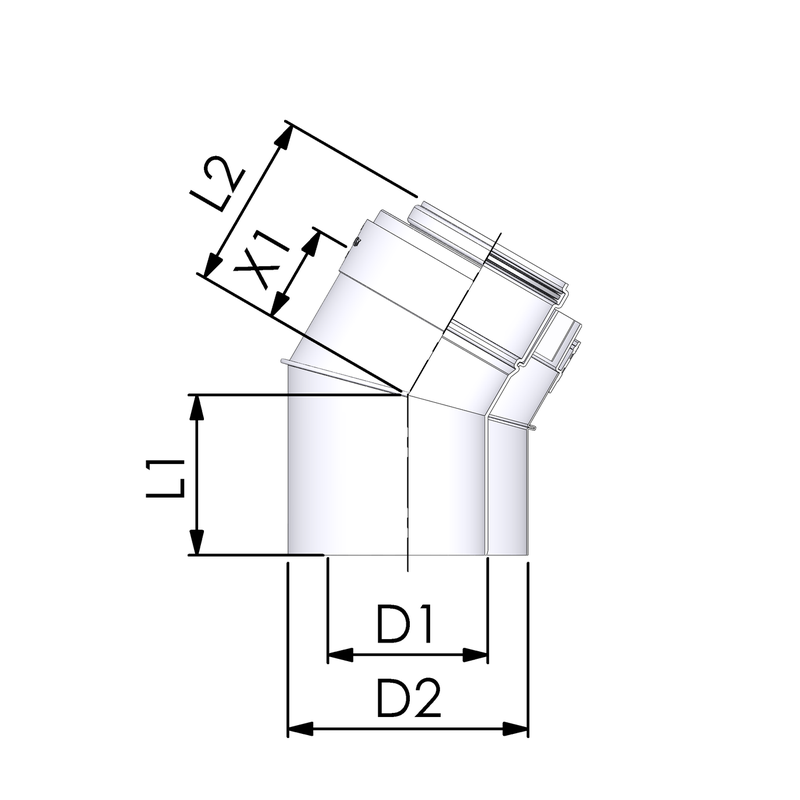

Bend angle:	30°
Diameter connection 1:	100/150 mm
Diameter connection 2:	100/150 mm
Length of connection 1:	100 mm
Length of connection 2:	110 mm
Wall thickness inner pipe:	2 mm
Working length connection 1:	100 mm
Working length connection 2:	60 mm
Colour:	White
Dry (non-condensing):	No
Material inner pipe:	Plastic
Material outer pipe:	Aluminium
Material sealing:	Ethylene-propylene diene monomer rubber (EPDM)
Max. medium temperature (continuous):	120 °C
Negative (negative pressure):	No
Number of lips:	2
Position of lips:	Straight
Positive (overpressure):	Yes
Production method for inner pipe:	Other
Production method for outer pipe:	Other
Quality class inner pipe:	Polypropylene (PP)
RAL-number:	9016
Shape:	Bend
Surface protection outer pipe:	Untreated
Surface treatment outer pipe:	Other
Wet (condensing):	Yes
With bottom support:	No
With clamping strip:	No
With inspection opening and cover:	No
With lip ring:	Yes
With measuring points:	No
