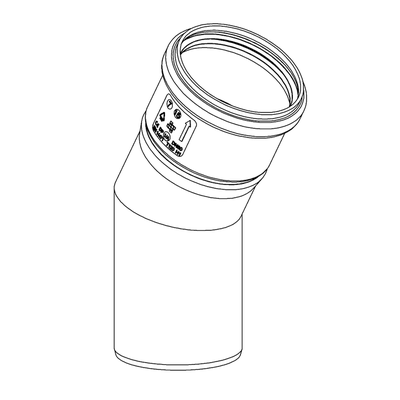

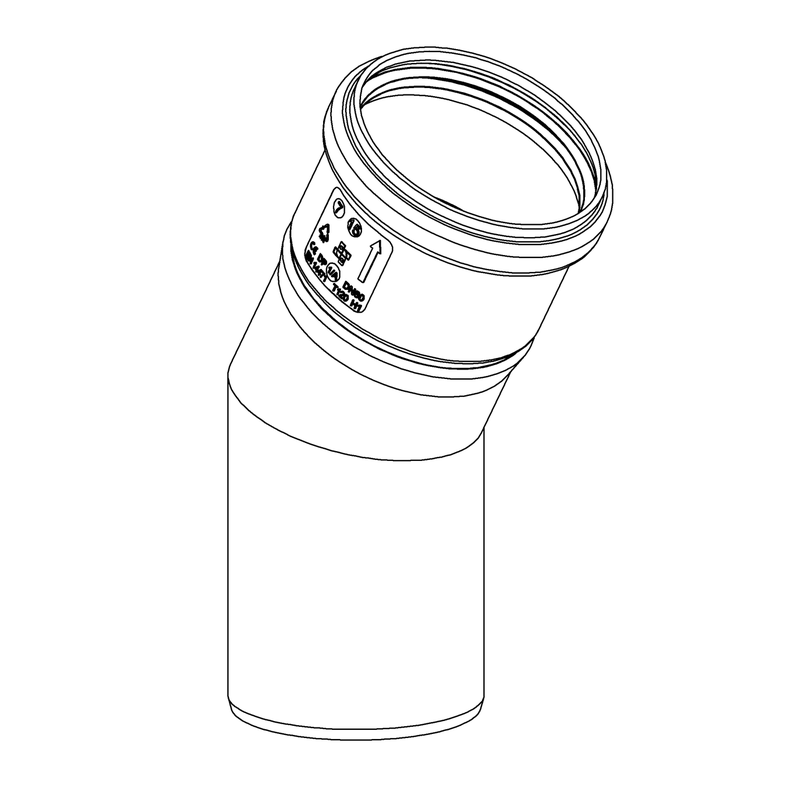

CoxDENS® PP bend 30° Ø 80
CoxDENS® PP bend 30° Ø 80
Are you looking for brochures, manuals or videos of this product?
| Article number: | BKDAAA601 |
|---|---|
| Packaging dimensions: | 256 x 145 x 152 mm |
| Quantity per pack: | 1 stuks |
| Number of units: | 1 stuks |
| Minimum order quantity: | 1 stuks |
| GTIN: | 08711939262996 |
| Gross weight: | 0,22 kg |
| Net weight: | 0,13 kg |
| Bend angle: | 30° |
|---|---|
| Bend radius: | 40 mm |
| Inner diameter, connection 1: | 76 mm |
| Inner diameter, connection 2: | 81 mm |
| Length: | 210 mm |
| Length of connection 1: | 100 mm |
| Length of connection 2: | 110 mm |
| Outer diameter connection 1: | 80 mm |
| Outer diameter connection 2: | 85 mm |
| Wall thickness: | 2 mm |
| Working length: | 160 mm |
| Working length connection 1: | 100 mm |
| Working length connection 2: | 65 mm |
| Adjustable: | No |
| Bend model: | Segmental bend |
| Colour: | White |
| Dry (non-condensing): | No |
| Material: | Plastic |
| Material quality: | Polypropylene (PP) |
| Material sealing: | Ethylene-propylene diene monomer rubber (EPDM) |
| Max. medium temperature (continuous): | 120 °C |
| Negative (negative pressure): | No |
| Number of lips: | 2 |
| Only suitable for air supply: | No |
| Position of lips: | Straight |
| Positive (overpressure): | Yes |
| Production method: | Seamless |
| RAL-number: | 9016 |
| Shape: | Bend |
| Surface protection: | Untreated |
| Surface treatment: | Untreated |
| Wet (condensing): | Yes |
| With clamping strip: | No |
| With lip ring: | Yes |
| With measuring connector: | No |
| With pressure switch: | No |
CoxDENS® PP bend 30° Ø 80
Available in 9 alternatives
Available spare parts
| Art.nr. | Product |
|---|---|
| BKMBAA501 | EPDM sealing ring Ø 80 for CoxDENS® PP flue gas exhaust products |
