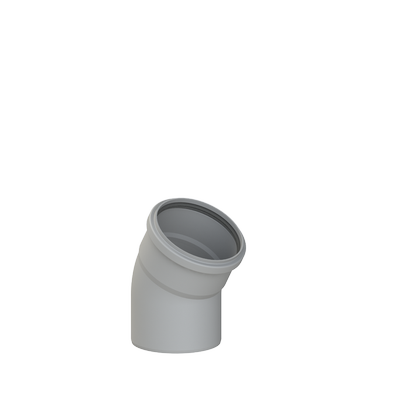

CoxDENS® PP bend 30º Ø 110

Are you looking for brochures, manuals or videos of this product?

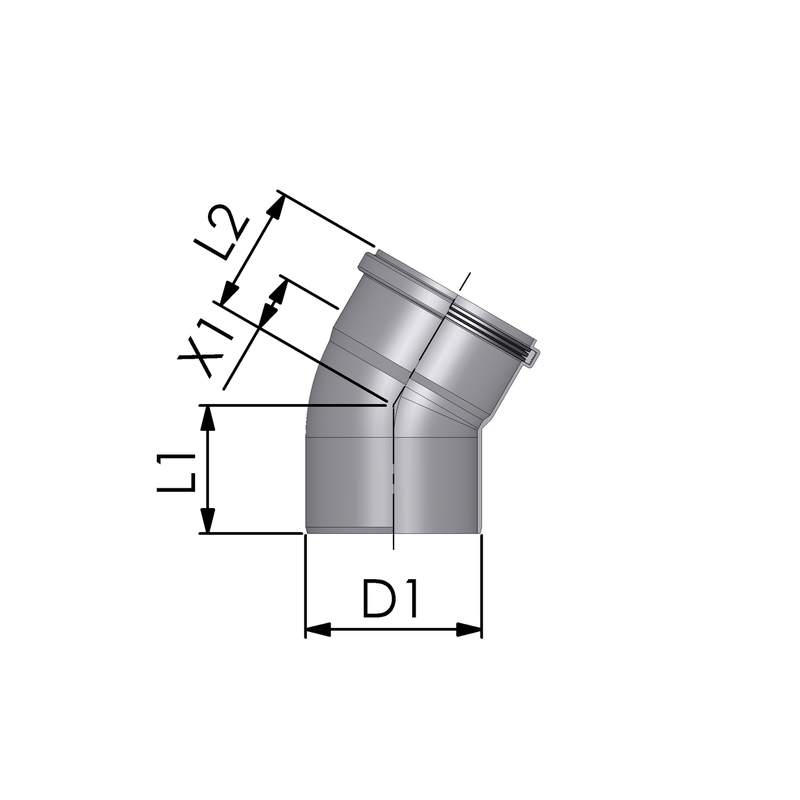

Bend angle:	30°
Bend radius:	55 mm
Inner diameter, connection 1:	105 mm
Inner diameter, connection 2:	111 mm
Length:	160 mm
Length of connection 1:	80 mm
Length of connection 2:	80 mm
Outer diameter connection 1:	110 mm
Outer diameter connection 2:	116 mm
Wall thickness:	2.7 mm
Working length:	115 mm
Working length connection 1:	80 mm
Working length connection 2:	35 mm
Adjustable:	No
Bend model:	Segmental bend
Colour:	Grey
Dry (non-condensing):	No
Material:	Plastic
Material quality:	Polypropylene (PP)
Material sealing:	Ethylene-propylene diene monomer rubber (EPDM)
Max. medium temperature (continuous):	120 °C
Negative (negative pressure):	No
Number of lips:	2
Only suitable for air supply:	No
Position of lips:	Straight
Positive (overpressure):	Yes
Production method:	Seamless
RAL-number:	7037
Shape:	Bend
Surface protection:	Untreated
Surface treatment:	Untreated
Wet (condensing):	Yes
With clamping strip:	No
With lip ring:	Yes
With measuring connector:	No
With pressure switch:	No

Art.nr.	Ø mm	RAL	b	3	c
AKDAAB601	60	9016	15	1080	841
AKDAAA601	60	9016	1	315	841
BKDAAB601	80	9016	9	360	841
BKDAAA601	80	9016	1	240	841
CLDAAA600	100	9016	1	240	841
CLDAAB600	100	9016	8	288	841
CKDAAA700	110	7037	1	240	841
CZDAAA700	125	7037	1	190	841
DKDAAA700	160	7037	1	-	841
