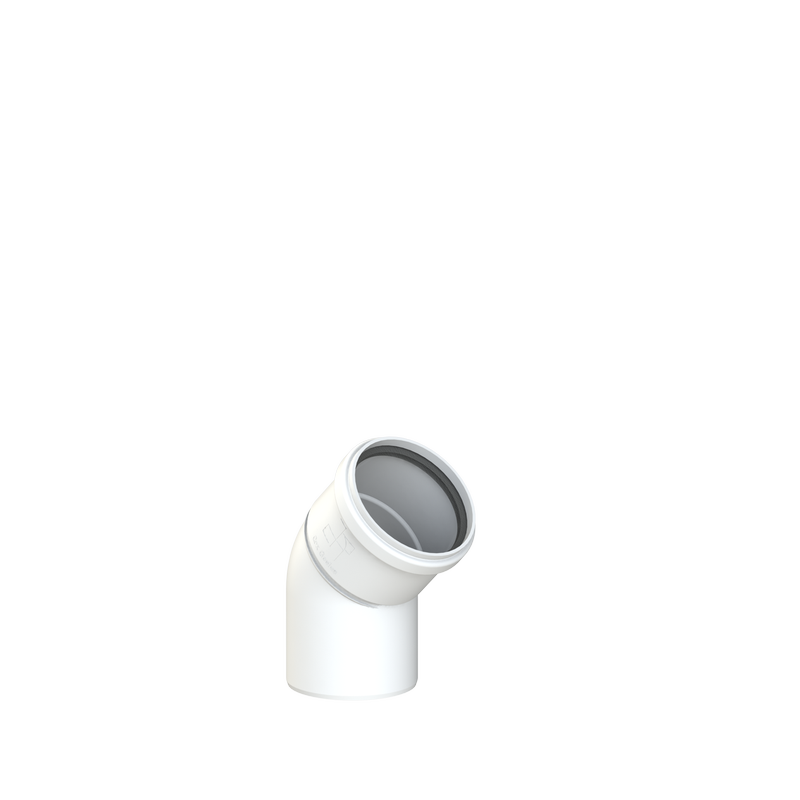

CoxDENS® PP bend 45° short Ø 80

Are you looking for brochures, manuals or videos of this product?

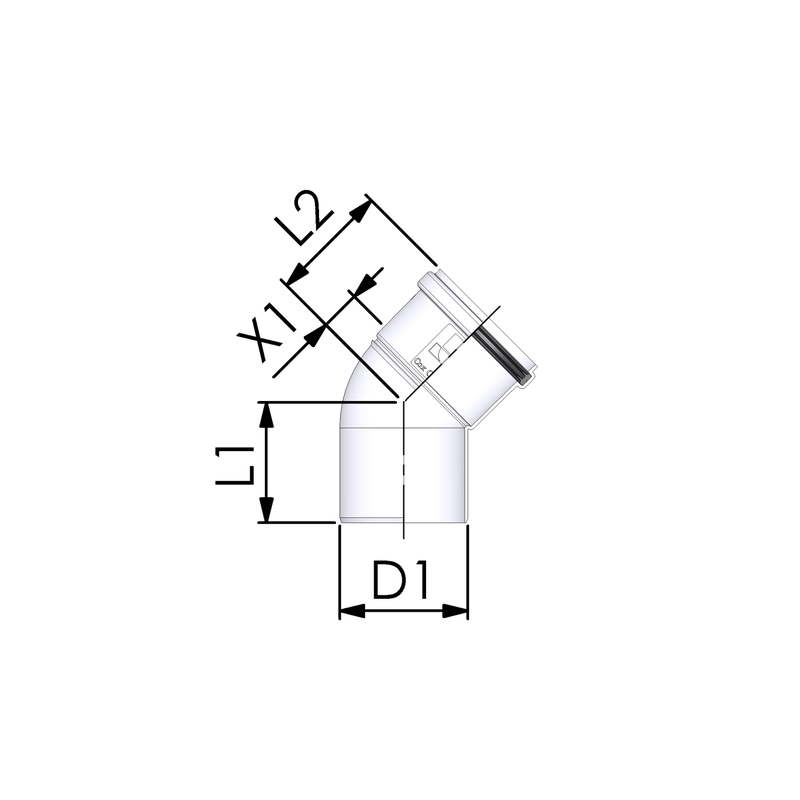

Bend angle:	45°
Bend radius:	40 mm
Inner diameter, connection 1:	76 mm
Inner diameter, connection 2:	81 mm
Length:	160 mm
Length of connection 1:	72 mm
Length of connection 2:	74 mm
Outer diameter connection 1:	80 mm
Outer diameter connection 2:	85 mm
Wall thickness:	2 mm
Working length:	106 mm
Working length connection 1:	72 mm
Working length connection 2:	34 mm
Adjustable:	No
Bend model:	Smooth bend
Colour:	White
Dry (non-condensing):	No
Material:	Plastic
Material quality:	Polypropylene (PP)
Material sealing:	Ethylene-propylene diene monomer rubber (EPDM)
Max. medium temperature (continuous):	120 °C
Negative (negative pressure):	No
Number of lips:	2
Only suitable for air supply:	No
Position of lips:	Straight
Positive (overpressure):	Yes
Production method:	Seamless
RAL-number:	9016
Shape:	Bend
Surface treatment:	Untreated
Wet (condensing):	Yes
With clamping strip:	No
With lip ring:	Yes
With measuring connector:	No
With pressure switch:	No

Art.nr.	Ø mm	RAL	b	3	c
AKAJAB601	60	9016	15	1080	841
AKAJAA601	60	9016	1	315	841
BKAJAB601	80	9016	15	720	841
BKAJAA601	80	9016	1	240	841
BKJJAB601	80	9016	9	675	841
CLAJAA600	100	9016	1	190	841
CLAJAB600	100	9016	12	216	841
CKAJAA700	110	7037	1	240	841
CKAJAB700	110	7037	8	288	841
CZAJAA700	125	7037	1	160	841
DKAJAA700	160	7037	1	90	841
EKAJAA700	200	7037	1	36	841
FKAJAA700	250	7037	1	-	841
