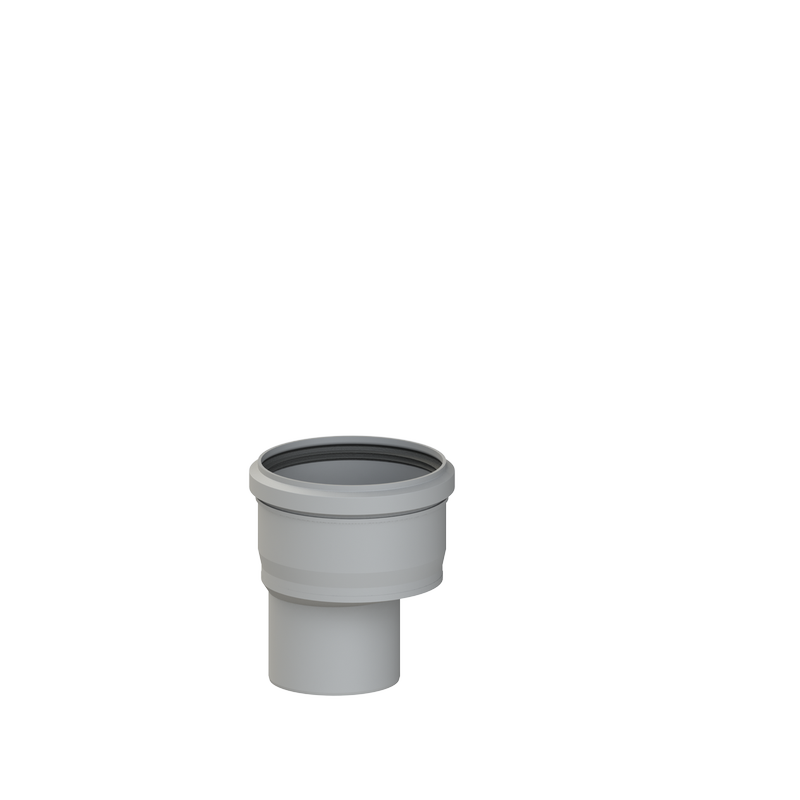

CoxDENS® PP expansion Ø 125 - 160 eccentric

Are you looking for brochures, manuals or videos of this product?

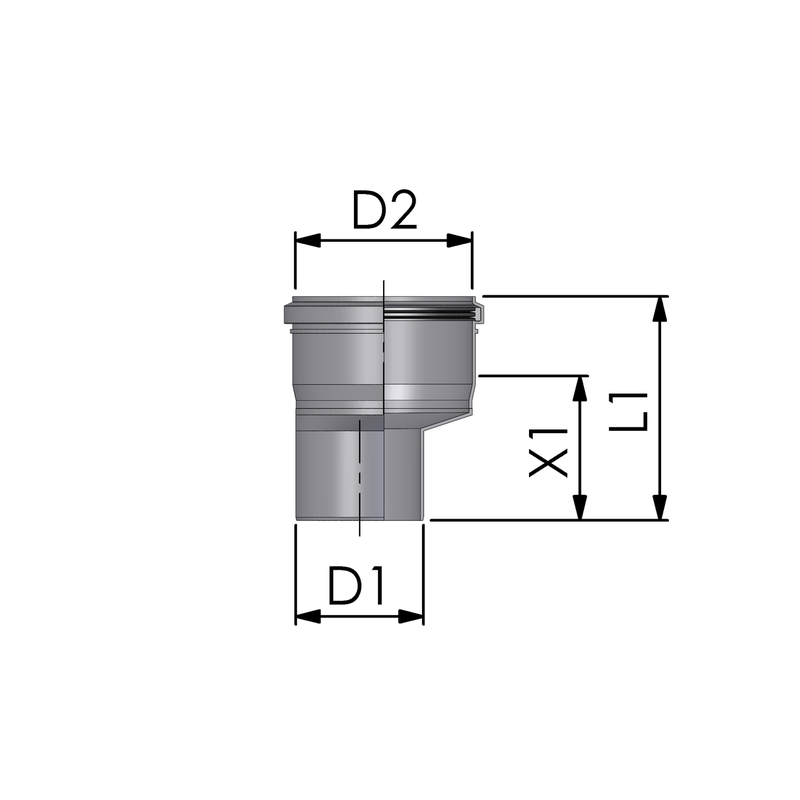

Inner diameter, connection 1:	119 mm
Inner diameter, connection 2:	160 mm
Length:	210 mm
Length of connection 2:	210 mm
Outer diameter connection 1:	125 mm
Outer diameter connection 2:	166 mm
Wall thickness:	3 mm
Working length:	135 mm
Working length connection 2:	135 mm
Adjustable:	No
Colour:	Grey
Dry (non-condensing):	No
Material:	Plastic
Material quality:	Polypropylene (PP)
Material sealing:	Ethylene-propylene diene monomer rubber (EPDM)
Max. medium temperature (continuous):	120 °C
Negative (negative pressure):	No
Number of lips:	2
Only suitable for air supply:	No
Position of lips:	Straight
Positive (overpressure):	Yes
Production method:	Other
RAL-number:	7037
Shape:	Reduction/enlargement piece
Surface protection:	Untreated
Surface treatment:	Untreated
Wet (condensing):	Yes
With clamping strip:	No
With lip ring:	Yes
With measuring connector:	No
With pressure switch:	No

Art.nr.	Ø mm	RAL	b	3	c
CKATAA700	80 - 110	7037	1	315	841
CZENAA700	110 - 125	7037	1	240	841
DKENAA700	110 - 160	7037	1	90	841
DKATAA700	125 - 160	7037	1	90	841
EKENAA700	160 - 200	7037	1	48	841
FKENAA700	200 - 250	7037	1	30	841
