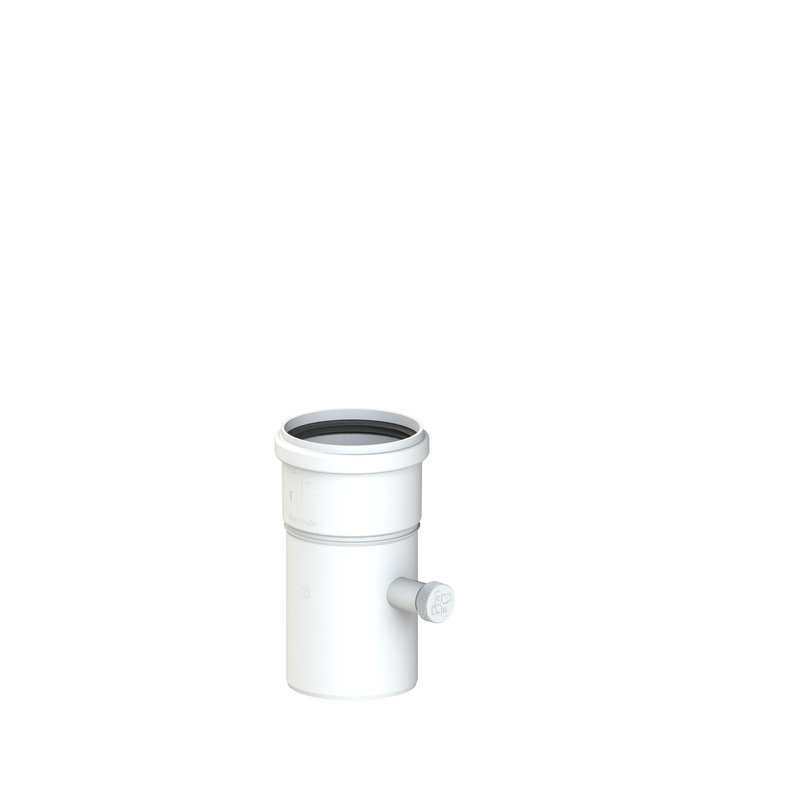

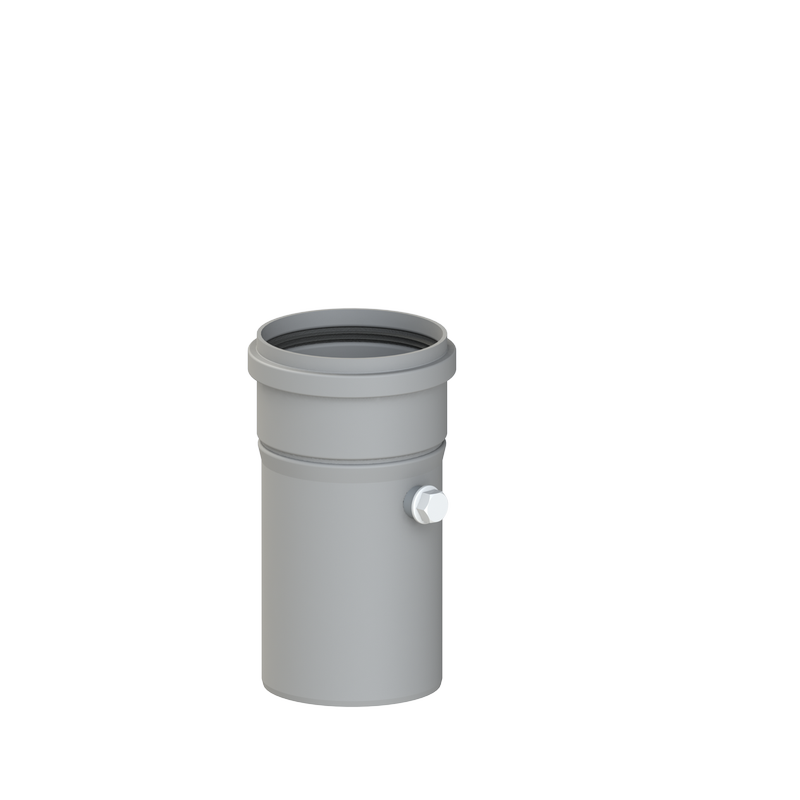

CoxDENS® PP measuring point Ø 125

Are you looking for brochures, manuals or videos of this product?

Inner diameter, connection 1:	119 mm
Inner diameter, connection 2:	126 mm
Length:	220 mm
Length of connection 2:	220 mm
Outer diameter connection 1:	125 mm
Outer diameter connection 2:	132 mm
Wall thickness:	3.1 mm
Working length:	155 mm
Working length connection 2:	145 mm
Adjustable:	No
Colour:	Grey
Dry (non-condensing):	No
Material:	Plastic
Material quality:	Polypropylene (PP)
Material sealing:	Ethylene-propylene diene monomer rubber (EPDM)
Max. medium temperature (continuous):	120 °C
Negative (negative pressure):	No
Number of lips:	2
Only suitable for air supply:	No
Position of lips:	Straight
Positive (overpressure):	Yes
Production method:	Other
RAL-number:	7037
Shape:	Other
Surface protection:	Untreated
Surface treatment:	Untreated
Wet (condensing):	Yes
With clamping strip:	No
With lip ring:	Yes
With measuring connector:	Yes
With pressure switch:	No

Art.nr.	Ø mm	RAL	b	3	c
AKARAA601	60	9016	1	429	841
BKARAA601	80	9016	1	240	841
CLARAA600	100	9016	1	240	841
CKARAA700	110	7037	1	192	841
CZARAA700	125	7037	1	162	841
DKARAA700	160	7037	1	60	841
EKARAA700	200	7037	1	-	841
