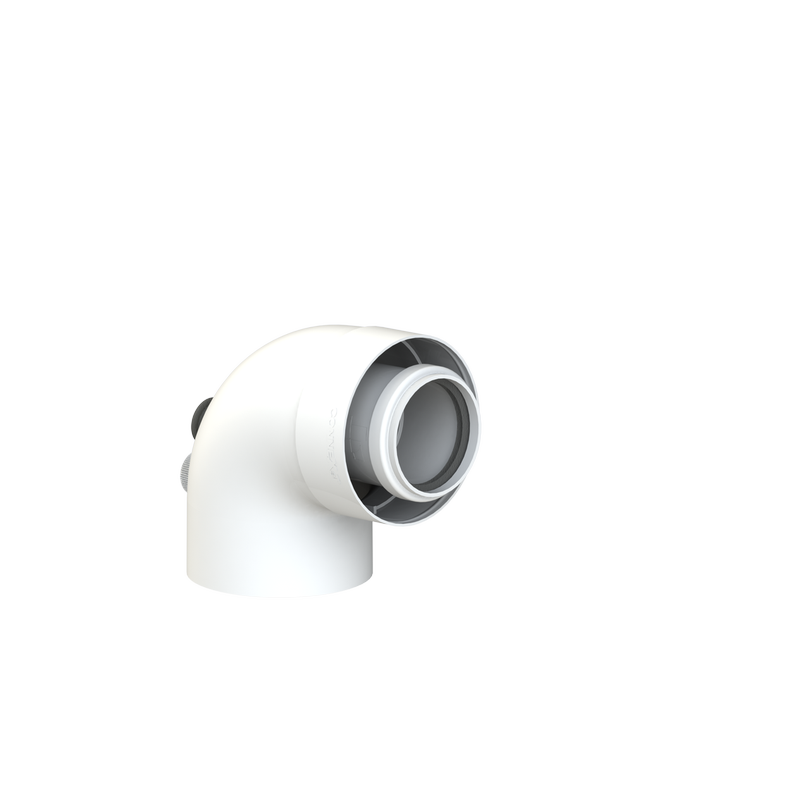

CoxDENS® PP/Plastic bend 87° short + 2 meas.points Ø 60/100 CONNEXT®X3

Are you looking for brochures, manuals or videos of this product?

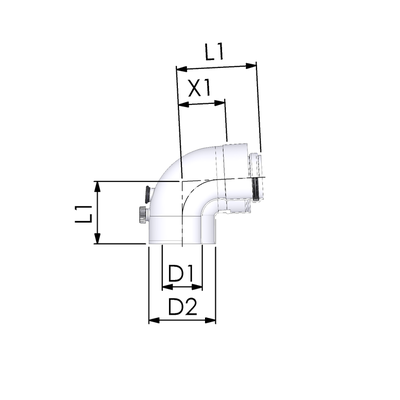

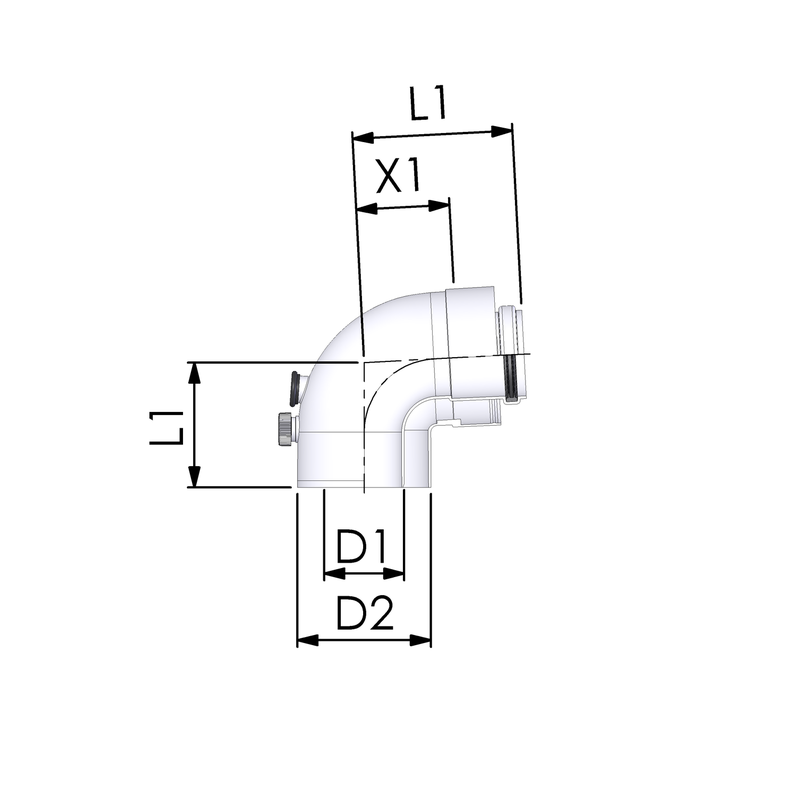

Bend angle:	87°
Diameter connection 1:	60/100 mm
Diameter connection 2:	60/100 mm
Length of connection 1:	95 mm
Length of connection 2:	120 mm
Wall thickness inner pipe:	1.8 mm
Working length connection 1:	95 mm
Working length connection 2:	80 mm
Colour:	White
Dry (non-condensing):	No
Material inner pipe:	Plastic
Material outer pipe:	Plastic
Material sealing:	Ethylene-propylene diene monomer rubber (EPDM)
Max. medium temperature (continuous):	120 °C
Negative (negative pressure):	No
Number of lips:	2
Position of lips:	Straight
Positive (overpressure):	Yes
Production method for inner pipe:	Seamless
Production method for outer pipe:	Seamless
Quality class inner pipe:	Polypropylene (PP)
RAL-number:	9016
Shape:	Bend
Surface protection outer pipe:	Untreated
Surface treatment outer pipe:	Untreated
Wet (condensing):	Yes
With bottom support:	No
With clamping strip:	No
With inspection opening and cover:	No
With lip ring:	Yes
With measuring points:	Yes

Art.nr.	Ø mm	RAL	b	3	c
AJFAAA601	60/100	9016	1	240	845

Art.nr.	Product
AKMBAA501	EPDM sealing ring Ø 60 for CoxDENS® PP flue gas exhaust products
