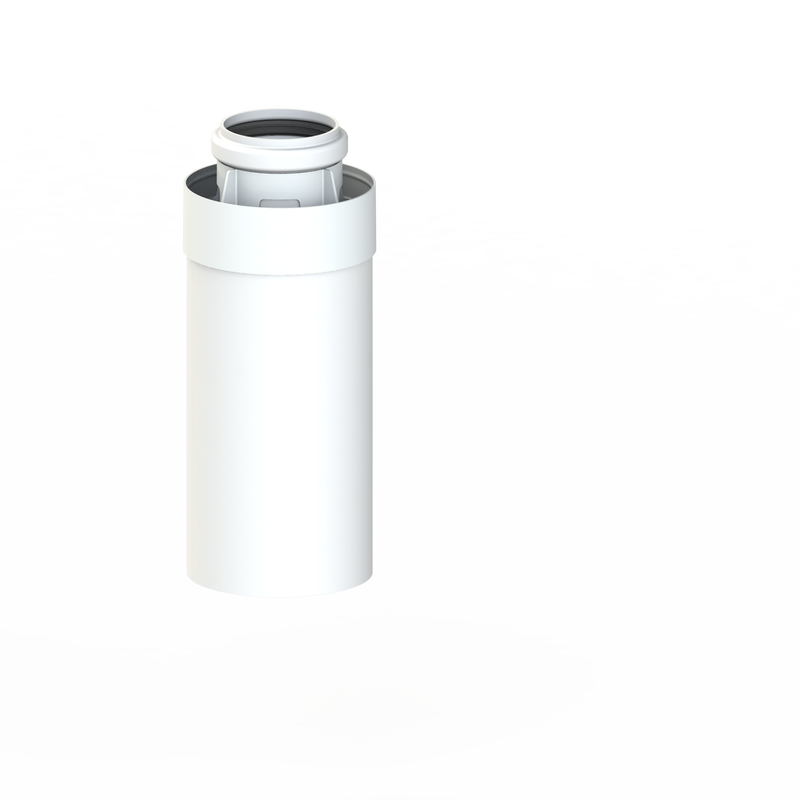

CoxDENS® PP/Plastic pipe Ø 60/100 L1000 with CONNEXT® X3

Are you looking for brochures, manuals or videos of this product?

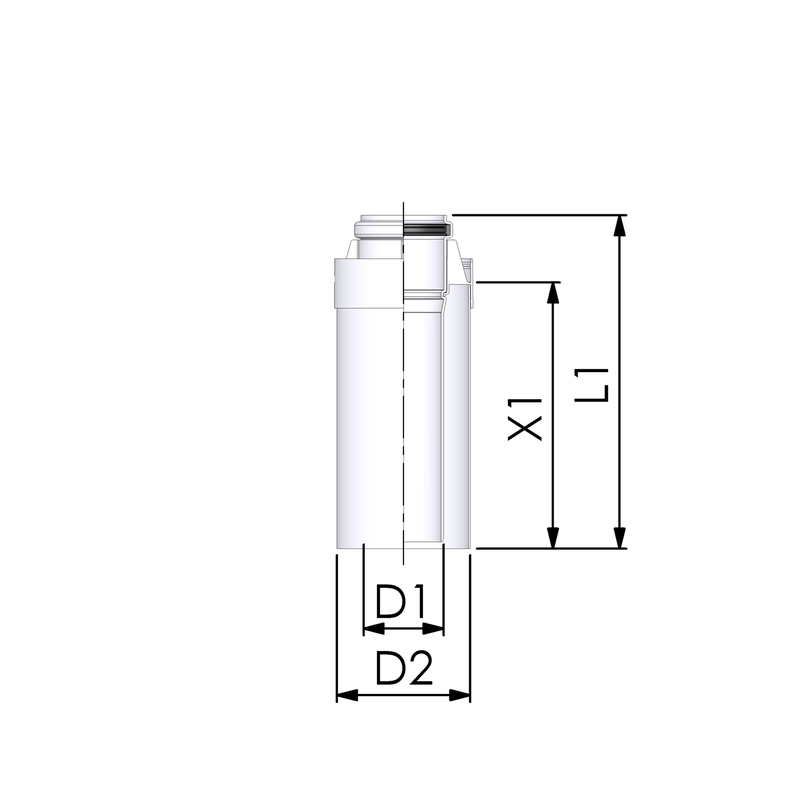

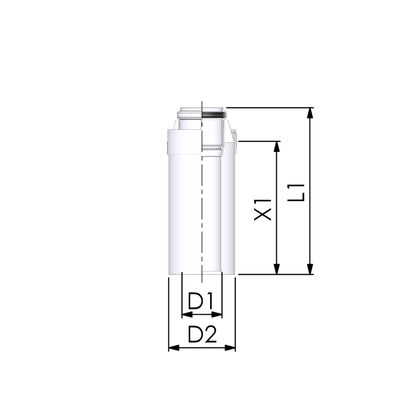

Flue gas and air supply pipe diameter:	60/100 mm
Length:	1000 mm
Wall thickness inner pipe:	1.8 mm
Working length:	950 mm
Colour:	White
Dry (non-condensing):	No
Material inner pipe:	Plastic
Material outer pipe:	Plastic
Material sealing:	Ethylene-propylene diene monomer rubber (EPDM)
Max. medium temperature (continuous):	120 °C
Negative (negative pressure):	No
Number of lips:	2
Outer pipe-outer pipe connection:	Other
Position of lips:	Straight
Positive (overpressure):	Yes
Production method for inner pipe:	Seamless
Production method for outer pipe:	Seamless
Quality class inner pipe:	Polypropylene (PP)
RAL-number:	9016
Surface protection outer pipe:	Untreated
Surface treatment outer pipe:	Untreated
Wet (condensing):	Yes
With clamping strip:	No
With lip ring:	Yes
With pull-out protection:	No

Art.nr.	Ø mm	RAL	Length (mm)	b	3	c
AJADAB601	60/100	9016	250	12	360	845
AJACAB601	60/100	9016	500	9	216	845
AJABAB601	60/100	9016	1000	12	96	845

Art.nr.	Product
AKMBAA501	EPDM sealing ring Ø 60 for CoxDENS® PP flue gas exhaust products
