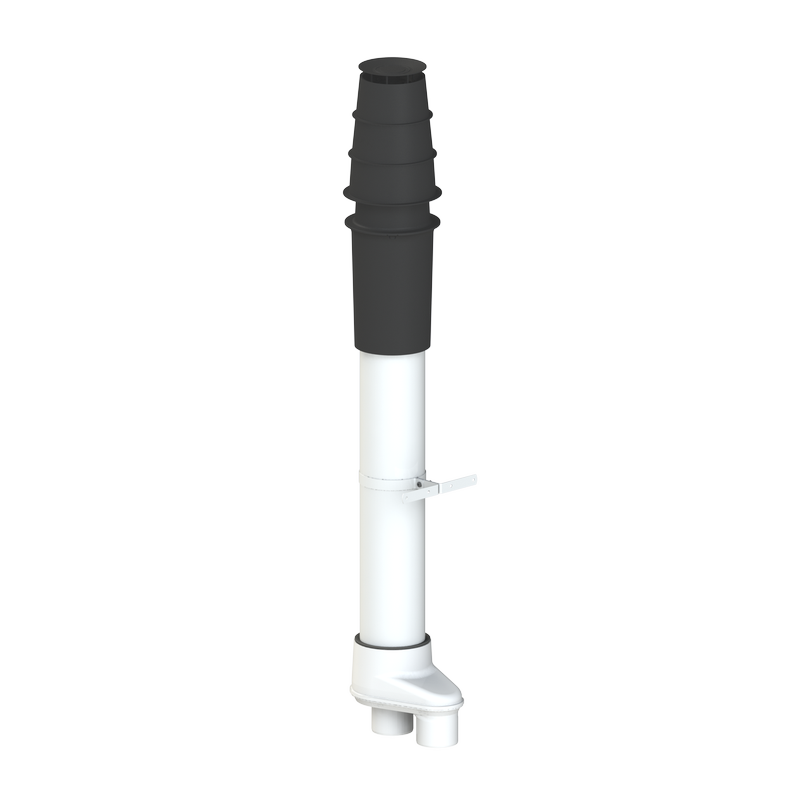

ECONEXT® plastic roof terminal condensing black Ø 80/80 PP flue pipe

Are you looking for brochures, manuals or videos of this product?

Diameter of parallel system:	80/80 mm
Length above roof (including cover):	550 mm
Total length:	1558 mm
Colour below the roof:	White
Colour on the roof:	Black
Dry (non-condensing):	No
Icicle/icing-free:	Yes
Material air supply pipe:	Plastic
Material flue pipe:	Plastic
Max. medium temperature (continuous):	120 °C
Negative (negative pressure):	No
Positive (overpressure):	Yes
Quality class flue pipe:	Polypropylene (PP)
RAL-number below the roof:	9016
RAL-number on the roof:	9005
Surface protection air supply pipe:	Untreated
Surface protection flue:	Untreated
Surface treatment air supply pipe:	Untreated
Type of system:	Parallel
Wet (condensing):	Yes
With mechanical ventilation connection:	No
With sliding plate:	No

Art.nr.	Ø mm	RAL	Length (mm)	b	3	c
277233	80/80	9005	1308	1	18	842
277255	80/80	9005	1558	1	6	842

Suitable for
