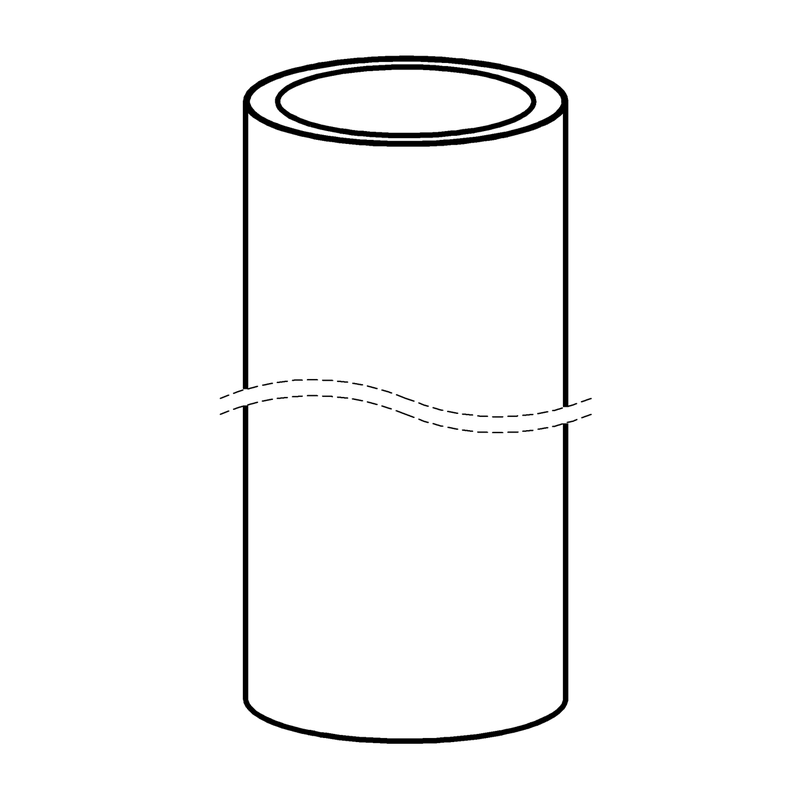

CoxDry® Therm flexible pipe Ø 180 L=10m
CoxDry® Therm flexible pipe Ø 180 L=10m
Are you looking for brochures, manuals or videos of this product?
Article number: | XLECAA000 |
---|---|
Packaging dimensions: | 1200 x 800 x 600 mm |
Quantity per pack: | 1 stuks |
Number of units: | 1 stuks |
Minimum order quantity: | 1 stuks |
GTIN: | 08711939267151 |
Gross weight: | 11,9 kg |
Net weight: | 7,58 kg |
Insulation thickness: | 25 mm |
---|---|
Length: | 10000 mm |
Nominal duct diameter: | 180 mm |
Working length: | 10000 mm |
Anti-bacterial treatment: | Yes |
Antistatic version: | No |
Bending strength: | Pliable |
Connection 1: | Duct end |
Connection 2: | Duct end |
Embeddable in concrete: | No |
Heat resistance Rd: | 0.66 (m².K)/W |
Inner surface protection: | Untreated |
Material duct: | Plastic |
Material insulation: | Elastomer (PES) |
Material quality duct: | Other |
Model: | Externally insulated duct |
Outer surface protection: | Other |
Outside colour: | Aluminium |
Perforated inner wall: | No |
Production method: | Other |
Type approval according to BBR/EKS: | No |
Wall thickness duct: | 4 mm |
With push-on clamp: | No |
With push-on profile: | No |
CoxDry® Therm flexible pipe Ø 180 L=10m
Available in 3 alternatives
Suitable for
![](/catalog-media/1/assets/content/P0425.png?w=200)
CoxDry® Heat Recovery roof terminal Ø 180 RAL 9005 for pitched roof
![](/catalog-media/1/assets/content/EP0263.png?w=200)
Non lead flashing 25°- 45° with PE swivel for CoxDRY® Ø180 black
![](/catalog-media/1/assets/content/P0186.png?w=200)
CoxDry® Heat Recovery roof terminal Ø 180 L=1325
![](/catalog-media/1/assets/content/P0186.png?w=200)
CoxDry® Heat Recovery roof terminal Ø 180 L=1050
