| Our products › Ventilation › Connection products › Natural/Mechanical ventilation › CoxCuisine® › CoxCuisine® Aluminium bend 87º Ø 125 RAL 9010

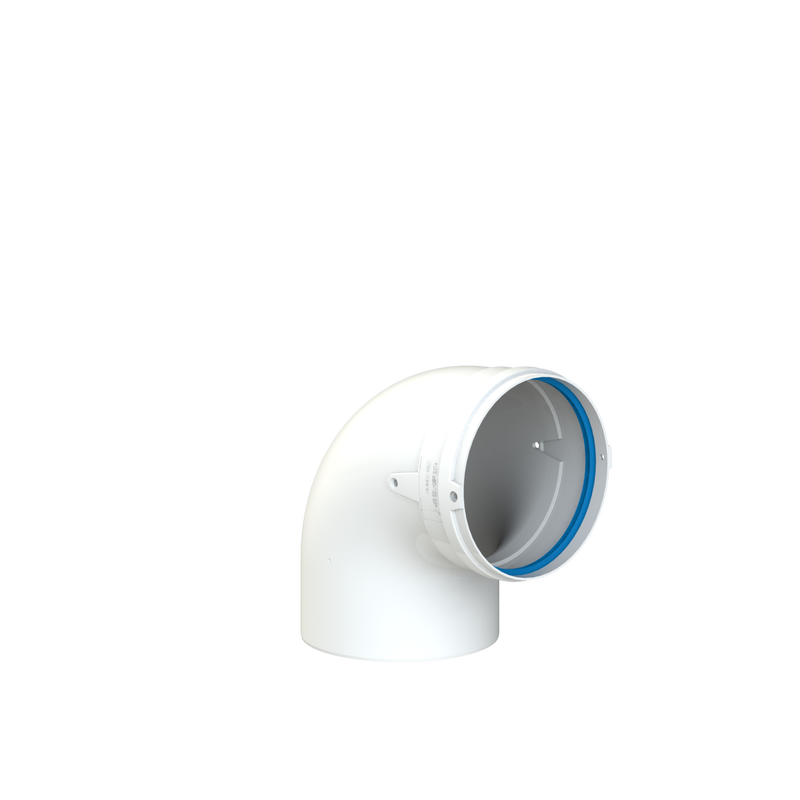

CoxCuisine® Aluminium bend 87º Ø 125 RAL 9010

1 available alternatives

Find a point of sale

Any questions ?

Are you looking for brochures, manuals or videos of this product?

Bend angle:	90°
Insert length:	40 mm
Nominal duct diameter:	125 mm
Working length connection 1:	120 mm
Working length connection 2:	80 mm
Anti-bacterial treatment:	No
Antistatic version:	No
Bend model:	Smooth bend
Bend radius (number x D):	62.5
Connection 1:	Insert end
Connection 2:	Other
Embeddable in concrete:	Yes
Inner surface protection:	Untreated
Material duct:	Aluminium
Model:	Other
Outer surface protection:	Untreated
Outside colour:	White
Perforated inner wall:	No
Production method:	Seamless
Wall thickness duct:	1.5 mm
With pre-mounted seal:	Yes
With push-on clamp:	No
With push-on profile:	No
