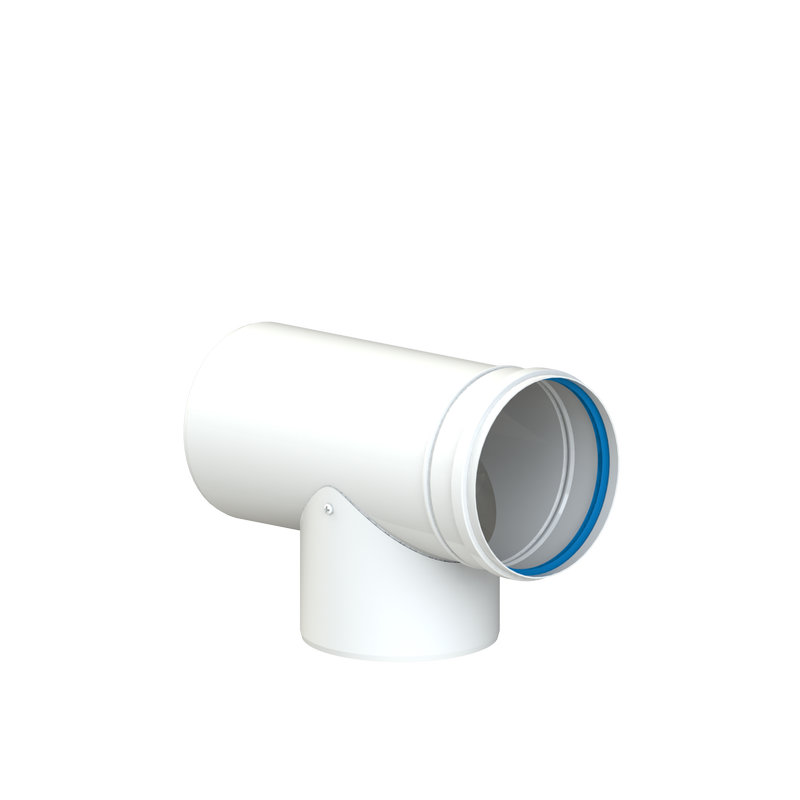

CoxCuisine® Aluminium T-piece Ø 125 RAL 9010

Are you looking for brochures, manuals or videos of this product?

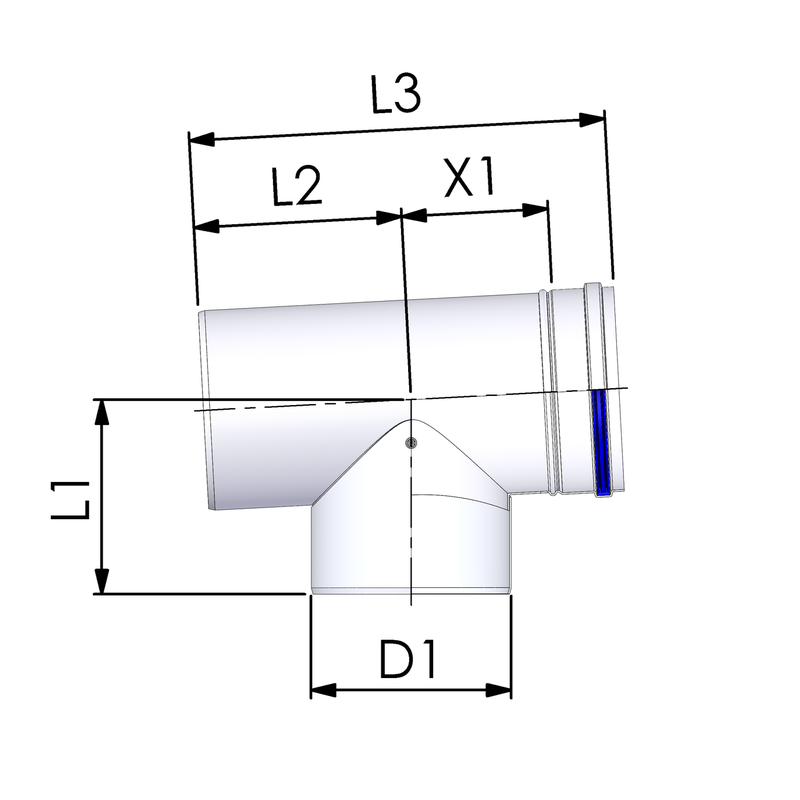

Insert length connection 1:	40 mm
Insert length connection 2:	40 mm
Insert length connection 3:	40 mm
Nominal duct diameter, connection 1:	125 mm
Nominal duct diameter, connection 2:	125 mm
Nominal duct diameter, connection 3:	125 mm
Working length connection 1:	185 mm
Working length connection 2:	90 mm
Working length connection 3:	130 mm
Anti-bacterial treatment:	No
Antistatic version:	No
Connection 1:	Insert end
Connection 2:	Other
Connection 3:	Insert end
Design form:	T-piece
Eccentric:	No
Embeddable in concrete:	Yes
Inner surface protection:	Untreated
Material duct:	Aluminium
Model:	Other
Outer surface protection:	Untreated
Outside colour:	White
Perforated inner wall:	No
Production method:	Other
Wall thickness duct:	1 mm
With pre-mounted seal:	Yes
With push-on clamp:	No
With push-on profile:	No
