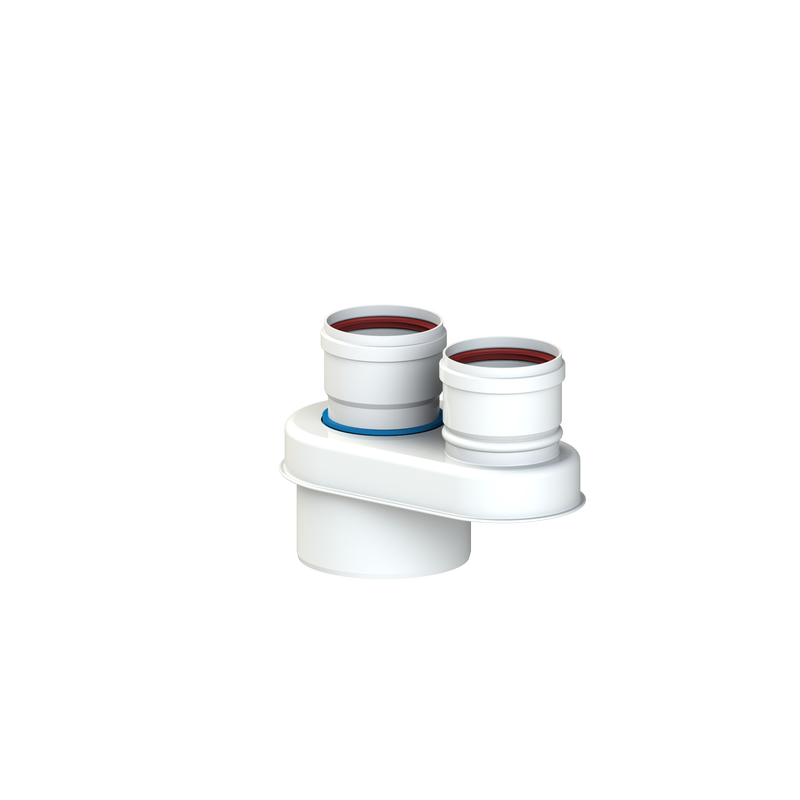

CoxCentric® Alu/Alu adapter concentric - twin-pipe Ø 80/125 - 80/80

Are you looking for brochures, manuals or videos of this product?

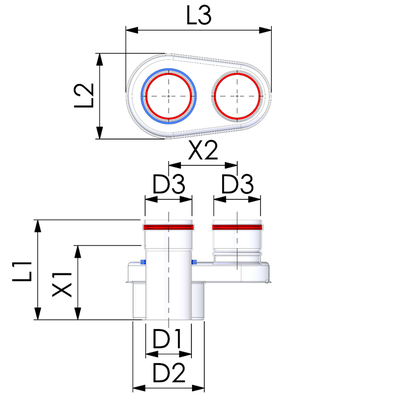

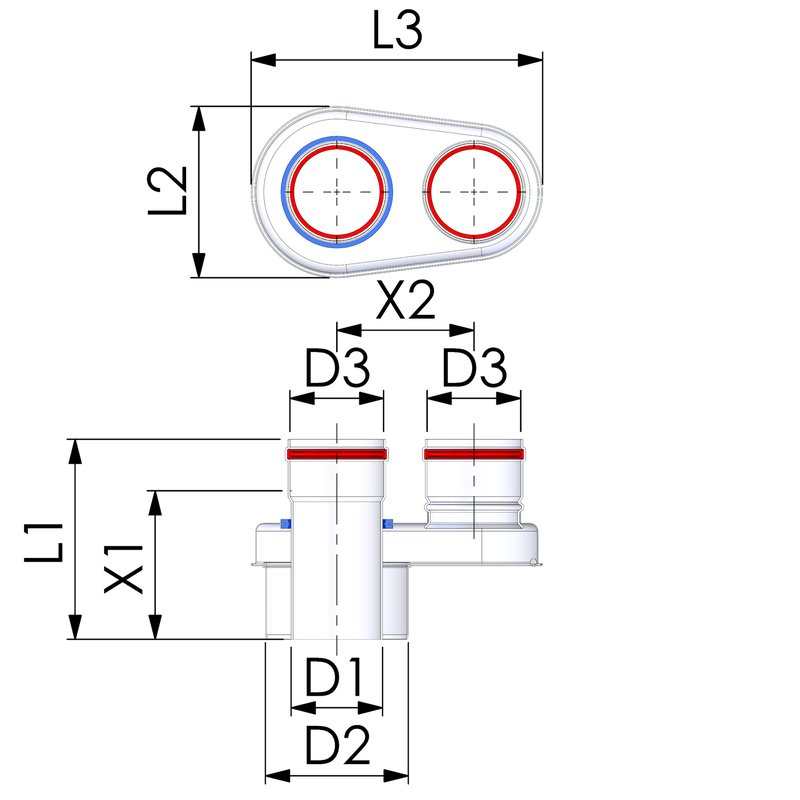

Distance centre-to-centre:	120 mm
Nominal duct diameter, top:	80/80 mm
Nominal duct diameter, underside:	80/125 mm
Working length:	100 mm
Coated:	Yes
Material:	Aluminium
System connection, underside/top:	Concentric/parallel
With measuring points:	No

Art.nr.	Ø mm	b	3	c
AAAYAA600	60/100 - 60/60	1	126	880
BAFCAA600	60/100 - 80/80	1	126	880
BABAAA600	80/125 - 80/80	1	126	881

Suitable for
