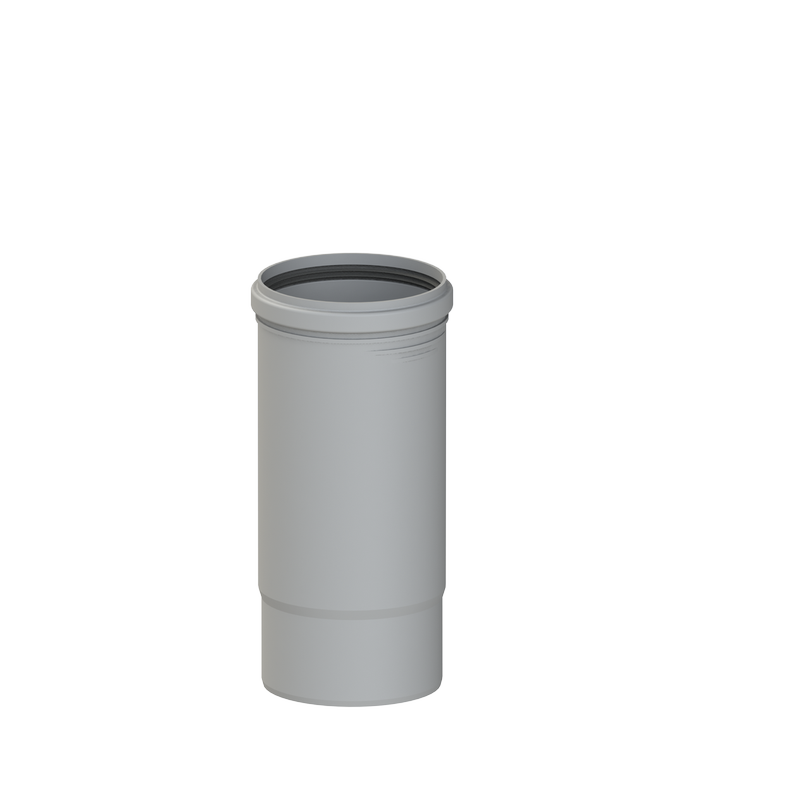

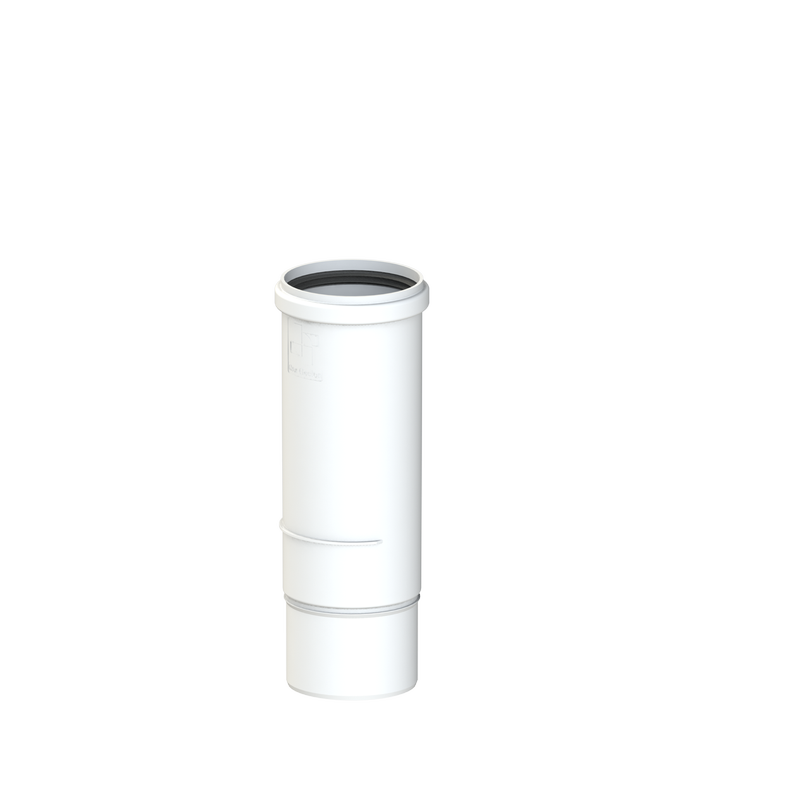

CoxDENS® PP adjustable pipe Ø 110

Are you looking for brochures, manuals or videos of this product?

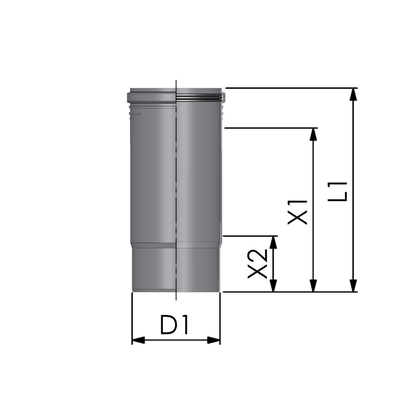

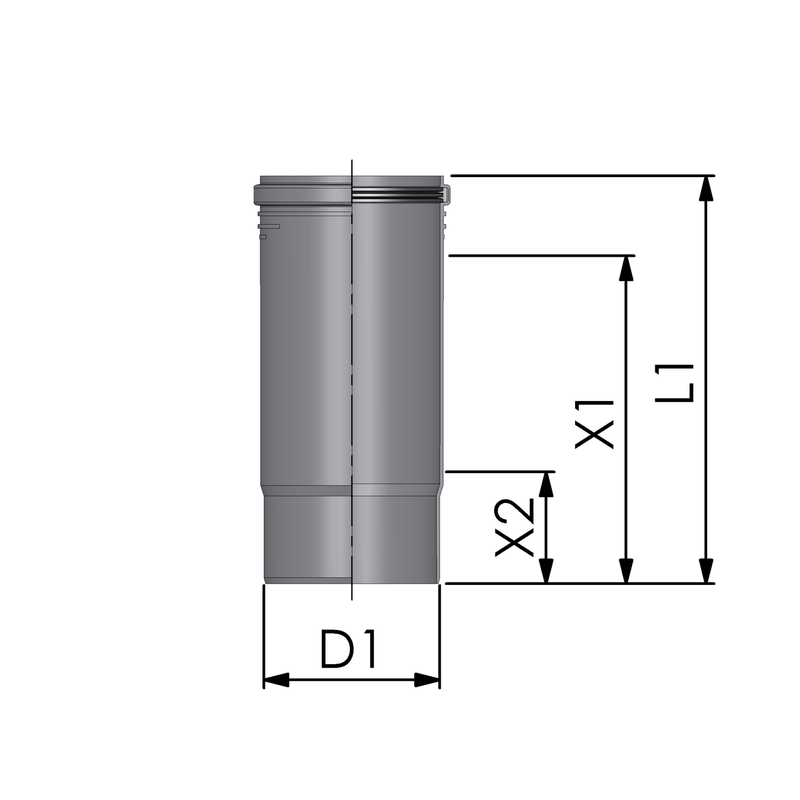

Inner diameter, connection 1:	105 mm
Inner diameter, connection 2:	111 mm
Length:	255 mm
Outer diameter connection 1:	110 mm
Outer diameter connection 2:	116 mm
Wall thickness:	2.7 mm
Working length:	80 - 210 mm
Adjustable:	Yes
Colour:	Grey
Dry (non-condensing):	No
Material:	Plastic
Material quality:	Polypropylene (PP)
Material sealing:	Ethylene-propylene diene monomer rubber (EPDM)
Max. medium temperature (continuous):	120 °C
Negative (negative pressure):	No
Number of lips:	2
Only suitable for air supply:	No
Position of lips:	Straight
Positive (overpressure):	Yes
Production method:	Seamless
RAL-number:	7037
Shape:	Sliding piece
Surface protection:	Untreated
Surface treatment:	Untreated
Wet (condensing):	Yes
With clamping strip:	No
With lip ring:	Yes
With measuring connector:	No
With pressure switch:	No

Art.nr.	Ø mm	RAL	b	3	c
AKAKAA601	60	9016	1	200	841
AKAKAB601	60	9016	12	900	841
BKAKAA601	80	9016	1	200	841
BKAKAB601	80	9016	9	648	841
CLAKAA600	100	9016	1	200	841
CKAKAA700	110	7037	1	126	841
CKAKAB700	110	7037	9	216	841
