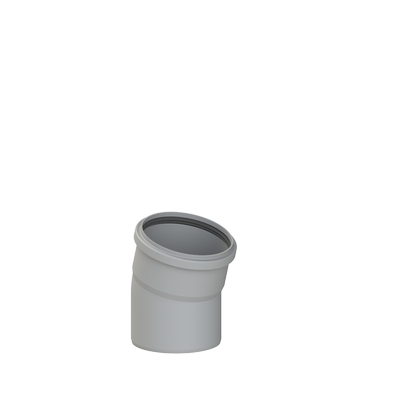

CoxDENS® PP bend 15° Ø 110

Are you looking for brochures, manuals or videos of this product?

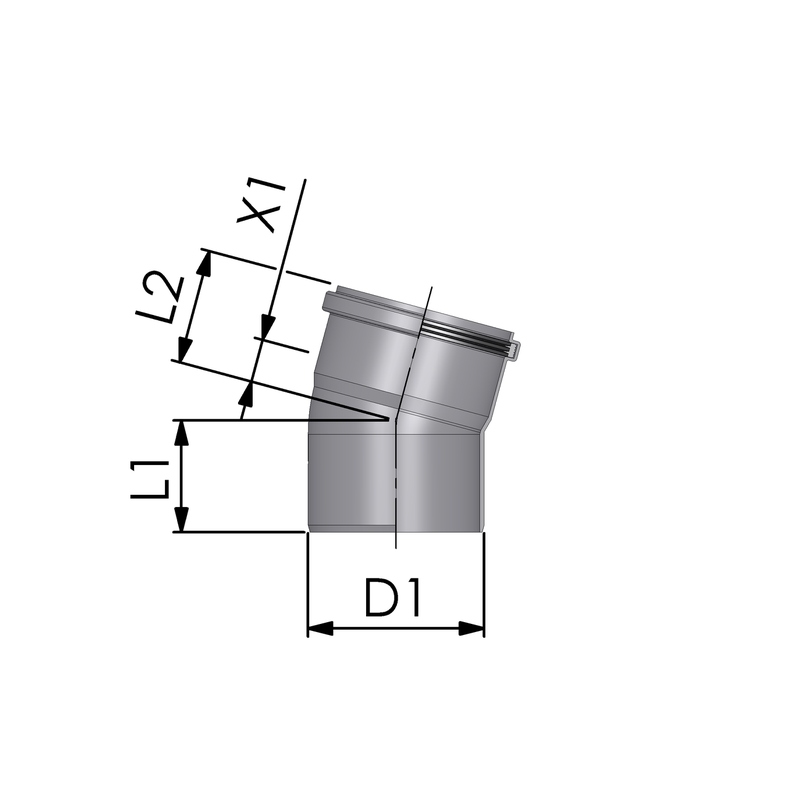

Bend angle:	15°
Bend radius:	55 mm
Inner diameter, connection 1:	105 mm
Inner diameter, connection 2:	111 mm
Length:	142 mm
Length of connection 1:	70 mm
Length of connection 2:	72 mm
Outer diameter connection 1:	110 mm
Outer diameter connection 2:	117 mm
Wall thickness:	2.7 mm
Working length:	97 mm
Working length connection 1:	70 mm
Working length connection 2:	27 mm
Adjustable:	No
Bend model:	Segmental bend
Colour:	Grey
Dry (non-condensing):	No
Material:	Plastic
Material quality:	Polypropylene (PP)
Material sealing:	Ethylene-propylene diene monomer rubber (EPDM)
Max. medium temperature (continuous):	120 °C
Negative (negative pressure):	No
Number of lips:	2
Only suitable for air supply:	No
Position of lips:	Straight
Positive (overpressure):	Yes
Production method:	Seamless
RAL-number:	7037
Shape:	Bend
Surface protection:	Untreated
Surface treatment:	Untreated
Wet (condensing):	Yes
With clamping strip:	No
With lip ring:	Yes
With measuring connector:	No

Art.nr.	Ø mm	RAL	b	3	c
AKDBAB601	60	9016	15	1080	841
AKDBAA601	60	9016	1	240	841
BKDBAB601	80	9016	9	360	841
BKDBAA601	80	9016	1	240	841
CLDBAA600	100	9016	1	240	841
CKDBAA700	110	7037	1	240	841
CZDBAA700	125	7037	1	190	841
